CM45

Description

CM45 is designed for medical application, which can control up to 4 actuators. CM45 is compatible with wide range of MOTECK mainstream actuators and handsets. It is perfect if you need a compact and small control box with SMPS.

Technical information

Input: 100 ~ 240V AC, 50/60Hz (SMPS)
Output: 29V DC, 5A total
Max. number of actuators: 4 channel
Max. number of controls: 1 channel
Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
IP Level: IPX5
Protection class: Class II
LED power on indicator
PTC overload protection
Color: Light gray (RAL 7035)
Antil-pull clip, compatible with Moteck H-type DIN plug only.
Compliant with CE marking, EN60601-1-2, IEC 61000-3-2, IEC 61000-3-3,
IEC 61000-4-2, IEC 61000-4-3,IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6,
IEC 61000-4-8, IEC 61000-4-11

Option

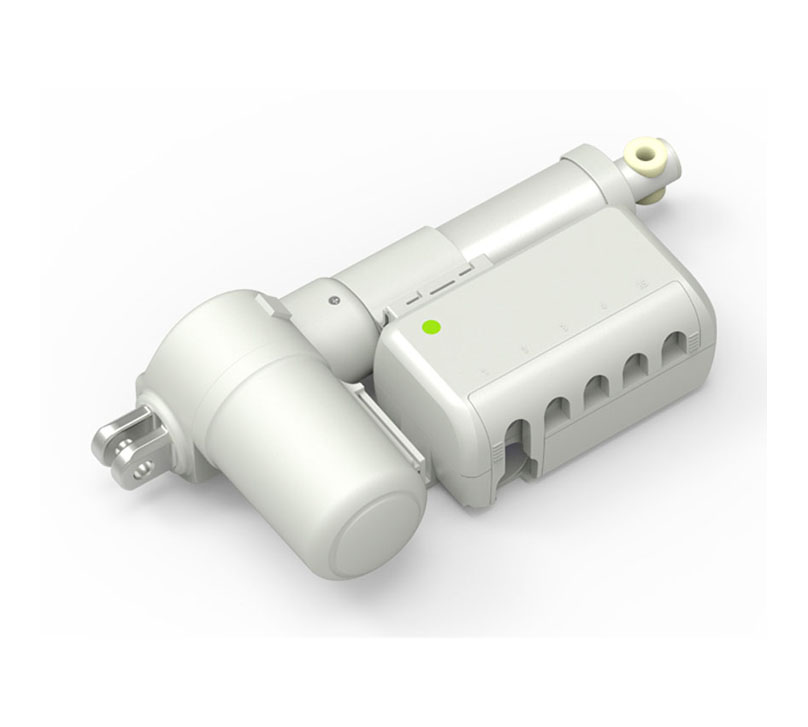

Optional C Clip, to fix CM45 onto MD66 or MK67 actuator

Download

Application

Medical Care
