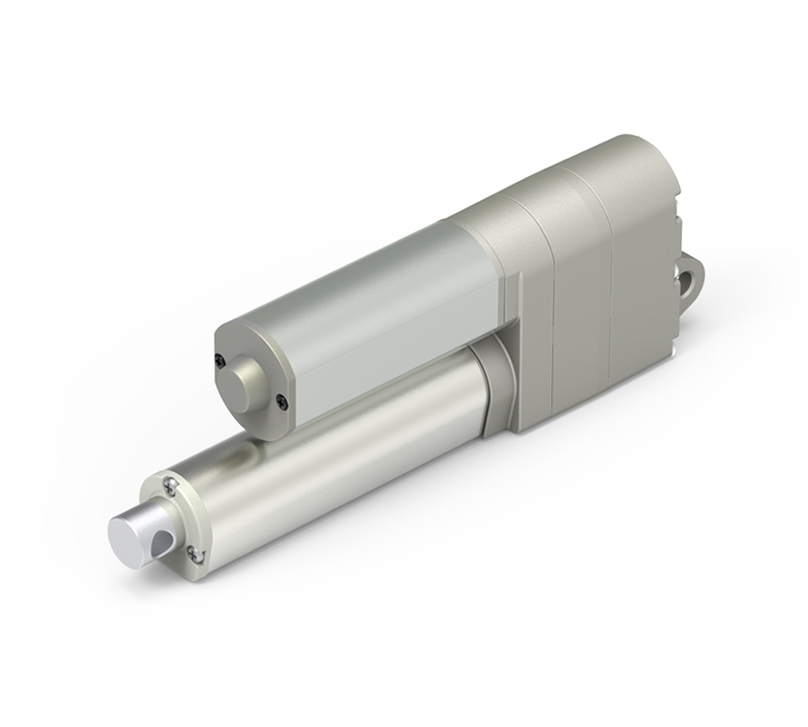

MK32

Description

MK32 is a small actuator with push/pull force up to 3500N.It features compact outline and low noise level that is mainly suitable for medical and furniture applications such as recliners, beds, etc., as well as various industrial applications with limited installation space.

Technical information

Input voltage: 24V DC
Max. load: 3500N (Push/Pull)
Max. static load: 5000N (Push/Pull)
Speed at no load: 26.0mm/sec (12mm pitch)
Speed at full load: 5.0mm/sec (3mm pitch @3500N loaded)
Stroke: 50～600mm (The max. stroke is depending on load)
Noise level: ≦52dB
IP level: IPX4, IP66
Aluminum alloy outer tube and gear box
Preset limit switches
Positioning:
- Optional digital positioning feedback with dual Hall effect sensors
- Optional analog positioning feedback with Potentiometer (POT)
Optional safety nut (in push direction)
Optional mechanical push only extension tube
Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
Operating ambient temperature: -20°C～+65°C (Full performance +5°C∼40°C)
Storage ambient temperature: -25°C～+70°C
Certified: CE Marking
- N-type motor: Electromagnetic Compatibility Directive 2014/30/EU
- H-type motor: EN 60601-1-2:2015+A1:2021

Download

Application

Furniture

Medical Care

Industrial
