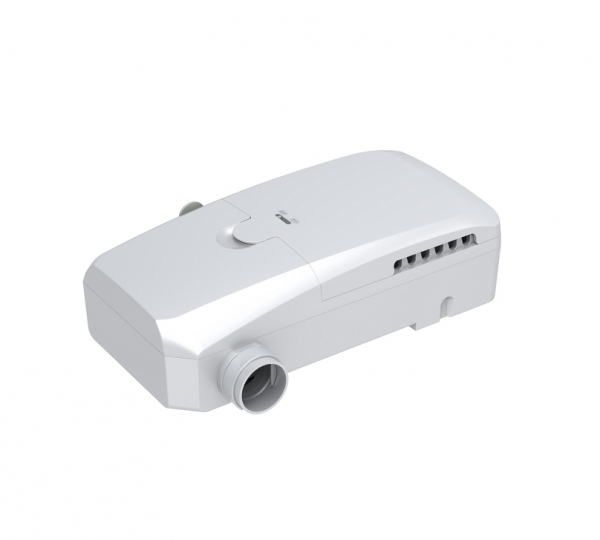

CM41-M
Description
The CM41-M control box can control up to 4 actuators, and uses Moteck's proprietary Bus communication protocol program, so it can be matched with many Moteck's compatible electronic control products to provide advanced and complex functions. CM41-M adopts SMPS power board inside, which makes the appearance thin and light. Using field-effect transistor design, there will be no relay switch noise during action control. If matched with a hand controller with power display, you can check the current power of the external battery box. Different accessories can also be purchased according to different installation method. With IPX6 waterproof design, it is suitable for medical, home care and other applications.
Technical information
  • Input: 100 ~ 240V AC, 50/60Hz (SMPS)
  • Standby power: <0.5 w="" li="">
  • Output: 32V DC, 5A@110V or 8A@240V
  • Max. number of actuators: 4 channels
  • FET Control concept (no relay noise)
  • Number of controls: 1 channels
  • Duty cycle: 10%, maximum 2 minutes continuous use.
  • Ambient operation temperature: +5°C∼+40°C
  • IP Protection level: IPX6
  • Protection class against electric shock: Class II (with functional earthing)
  • Color: Light gray RAL 7035
  • Power cord length: 3000mm straight
  • Certified: CE Marking, EN 60601-1, EN60601-1-2, BS EN 60601-1-2, IEC 60601-1-2, EN IEC 61000-3-2, BS EN IEC 61000-3-2, EN 61000-3-3, BS EN 61000-3-3
  • The default standard mounting plate can provide flexible installation methods
Option
  • Optional mounting clip, can attach to MK31-QR actuators
  • Optional function supports an external BTP3 battery box, which can be automatically charged (items purchased separately)
  • Option function supports battery power display (need to be connected to a hand controller or control panel with power display)
Download
Application
Furniture
Medical Care
