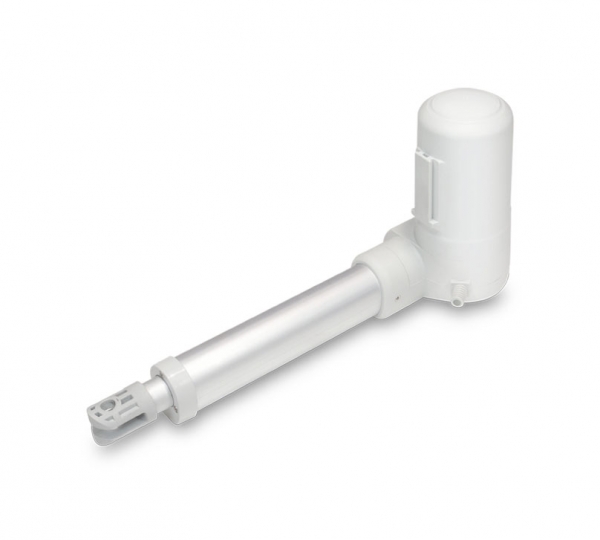

MD66
Description

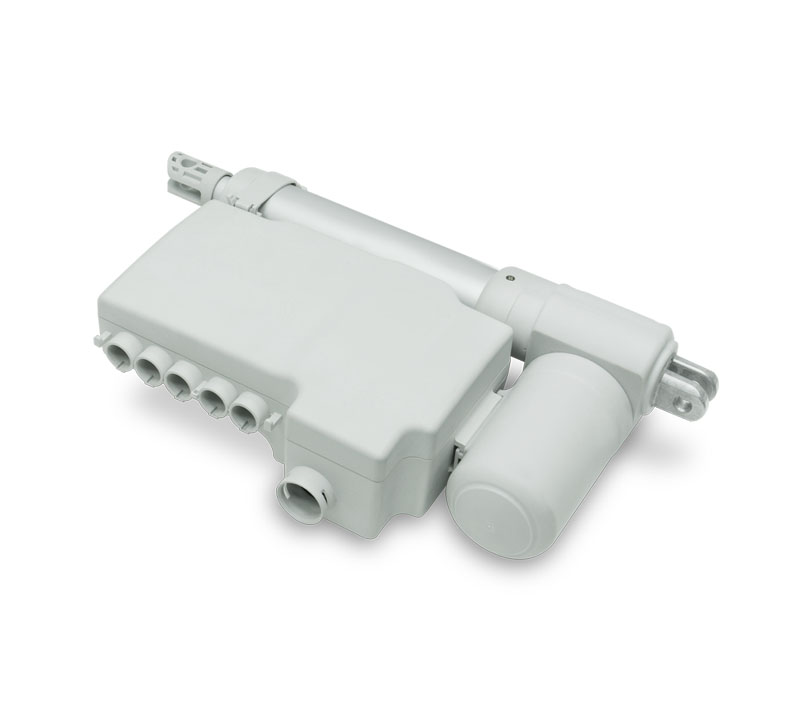

MD66 is a quiet and powerful actuator up to 6000N thrust, designed for use in home care and medical bed. The control box MD6C, which can be perfectly attached and integrated to MD66 are available for customers to choose.
Technical information
  • Input voltage: 24V DC
  • Max. load: 6000N (push) / 4000N (pull)
  • Typical speed at no load: 16.6 mm/sec
  • Typical speed at full load: 2.9 mm/sec (6000N load)
  • Stroke: 50 ~ 300 mm
  • Noise level: ≦50dB
  • IP Protection level: IPX5 (static, non-action)
  • Color: Light gray RAL 7035
  • Preset limit switches
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: +5°C ~ +40°C
  • Storage ambient temperature: -25°C ~ +65°C
  • Certified: CE Marking, EN 60601-1-2, IEC 60601-1
Option
  • Positioning signal feedback with Hall effect sensor x 1
  • Positioning signal feedback with Hall effect sensor x 2
  • Mechanical push only extension tube
  • Safety nut (in push direction)
  • Mechanical brake (can't go with AG motor and spindle option)
Application
Furniture
Medical Care
Related Products

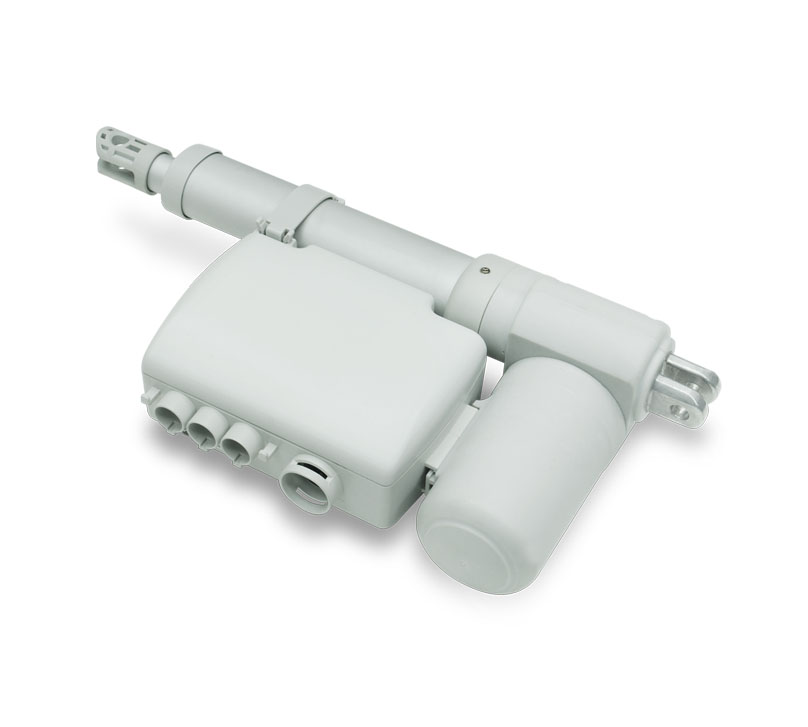

CB2P
