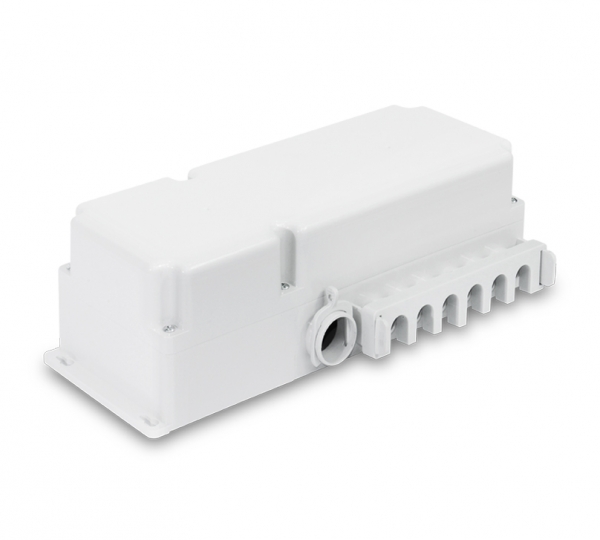

CB4P

Description

CB4P control box is mainly designed for the medical care applications, such as hospital bed and nursing bed. With the optional High Power and Synchronization functions, there are three versions in this series as CB4P, CB4P-SY and CB4P-HP.

Technical information

Input: 100 / 120 / 230V AC
Output voltage: 24V DC
Output rated current: Refer to Data Sheet
Power supply: Toroidal transformer 156W / 180W / 216W
Max. number of actuators: 4 channels
Max. number of controls: 2 channels
Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
Over-current protection function
IP Ievel: IP54, IPX6
Electric shock protection level: Class I
Color: Light grey RAL 7035
3-Pin detachable AC power cord: 3000mm
CE Marking: EN IEC 60601-1, EN IEC 60601-1-2 (for CB4P only)
Rechargeable lead-acid battery (1.3 Ah)
