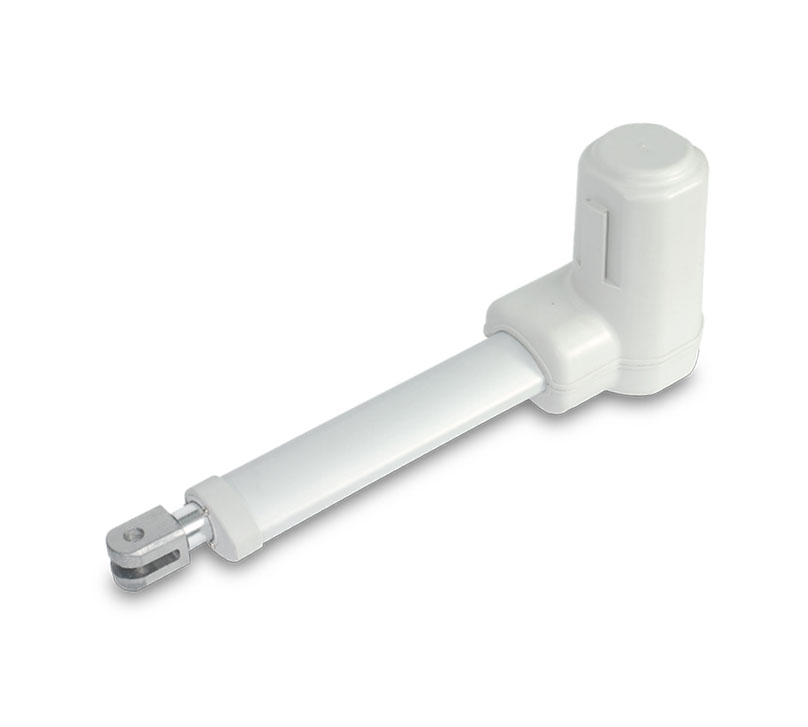

MD60 is a quiet and powerful actuator up to 6000N thrust, designed for use in a variety of medical and home care applications such as patient hoist and bed.
Technical information
  • Input voltage: 24V DC
  • Max. load: 6000N (push) / 4000N (pull)
  • Typical speed at no load: 23 mm/sec
  • Typical speed at full load: 5.0 mm/sec (6000N load)
  • Stroke: 50 ~ 400 mm
  • Noise level: ≦53dB
  • IP Level: IPX4
  • Rear connector’s pivot orientation can be chosen in every 30 degrees.
  • Preset limit switches
  • Aluminum outer tube
  • Steel extension tube
  • Color: Light gray RAL 7035
  • Duty cycle: 10% and max. 2 min. continuous operation in 20 min.
  • Ambient operation temperature: +5°C ~ +40°C
  • Certified:
    - CE Marking, EN 60601-1-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-8
    - RoHS, Directive 2011/65/EU and commission delegated Directive (EU)2015/863, (EU)2017/2102
  • Positioning signal feedback with Hall effect sensor x 1
  • Positioning signal feedback with Hall effect sensor x 2
  • Mechanical push only extension tube
  • Safety nut (in push direction)
  • IP Level: IPX6
  • QR1 quick release. Only go with motor and spindle code A8 or AC. And the loading conditions are shown in the table below for QR1 operation.

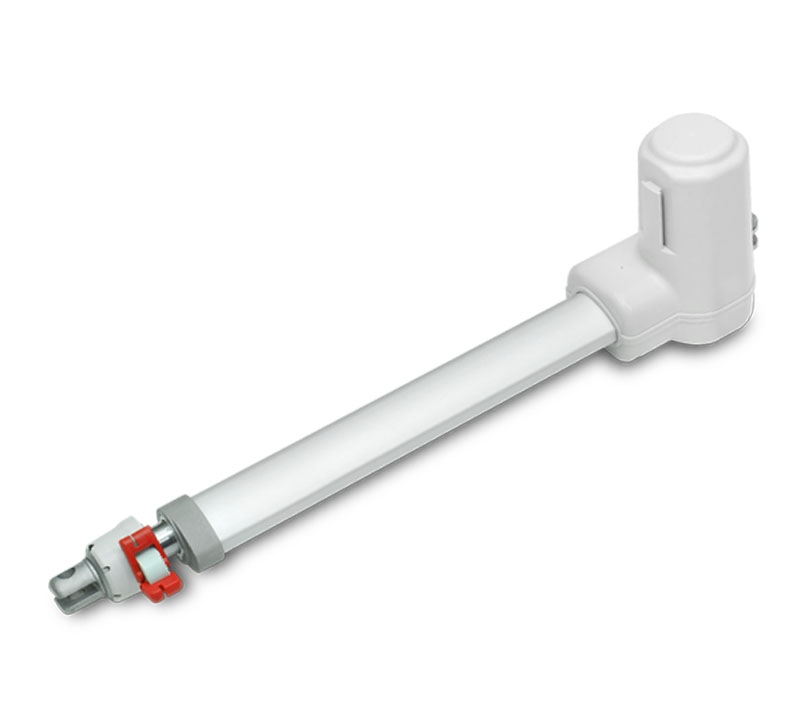

  • QR2 quick release: To retract actuator quickly by pinching the QR2 grip while emergency

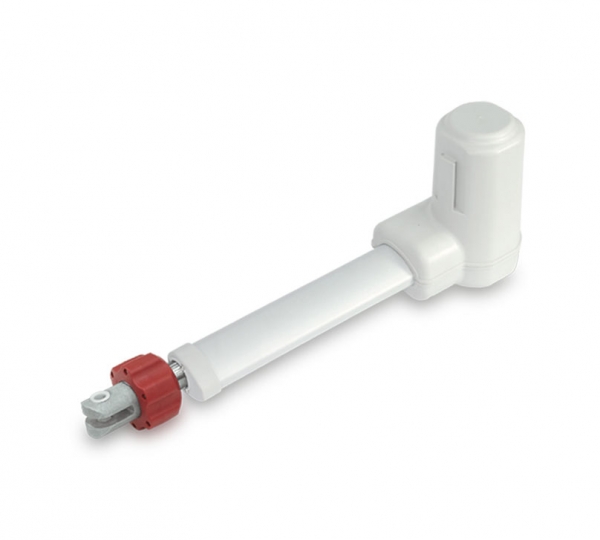

  • MR3 manual release: To retract actuator slowly and put down the patient safely by turning the MR3 knob with hand when losing power in the application of patient hoist
