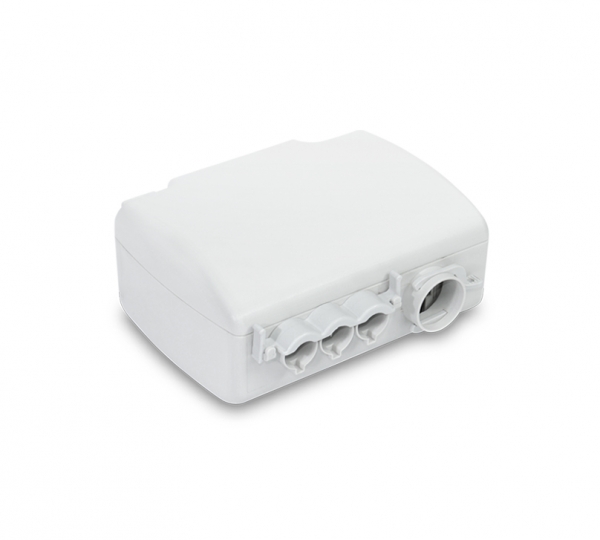

Control Box CB2P

Comparison

Q'ty :

Inquiry

CB2P

Description

CB2P is specially designed for medical and home care applications. With its compact design, it can be attached to actuator MD60, MD66 or MD7 as an integrated set.

Technical information

Input: 110V AC 60Hz / 230V AC 50Hz (EI transformer), 100 ~ 240V AC, 50/60Hz (SMPS)
Output voltage: 24V DC (EI transformer), 29V DC (SMPS)
Output rated current: 3A (per channel)
Max. number of actuators: 2 channels
Max. number of controls: 1 channel
Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
IP level: IP65
Over-current protection function
Emergency lowering against power outage, to retract actuators with 9V batteries (not included)
Electric shock protection level: Class II
Color: Light grey RAL 7035
Power cord length: 3000mm
CE Marking: EN IEC 60601-1, EN IEC 60601-1-2

Option

C Clip: To fix CB2P onto MD60, MD66 or MD7 actuators

Download

Application

Medical Care
