MK67

Description

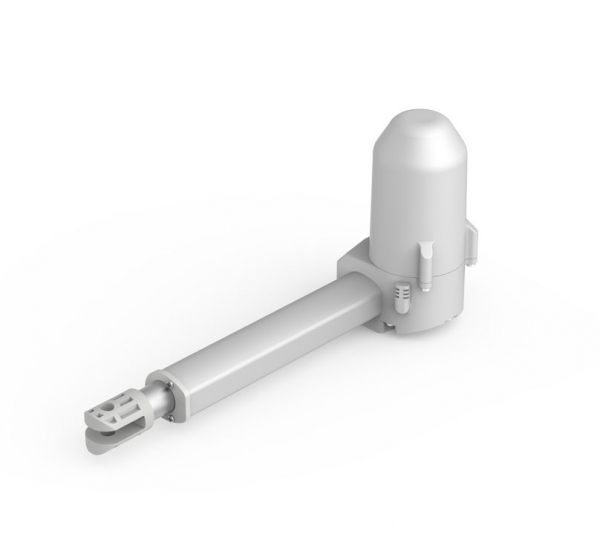

The MK67 is an economical medical linear actuator with advantages such as short installation length and small motor housing. It supports dual Hall effect sensors for precise position feedback and offers a enhanced nut option to improve operational stability and extend service life, making it an ideal solution for medical beds and home care equipment.

Technical information

Input voltage: 24V DC
Max. load: 6000N (push) / 4000N (pull)
Typical speed at full load: 2.6mm/sec (6000N load)
Stroke: 50 ~ 300mm
Noise level: ≦50dB
IP level: IPX5
Aluminum alloy outer tube
Color: Light gray RAL 7035
Certified: CE Marking, EN 60601-1-2, BS EN 60601-1-2, IEC 60601-1-2
Optional positioning signal feedback with dual Hall effect sensors
Push only option
Optional pivot orientation of rear connector 90°
Optional enhanced nut: By increasing the threaded contact area, the stress is distributed, which helps to reduce radial runout during long-stroke operation.

Usage

Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
Operating ambient temperature: +5°C to +40°C
Transport and storage temperature: -10°C to +50°C
Relative humidity: 20% to 85%
Atmospheric pressure: 71 kPa to 101.3 kPa
Height above mean sea level: Max. 3,000 meters

Download

Application

Medical Care
