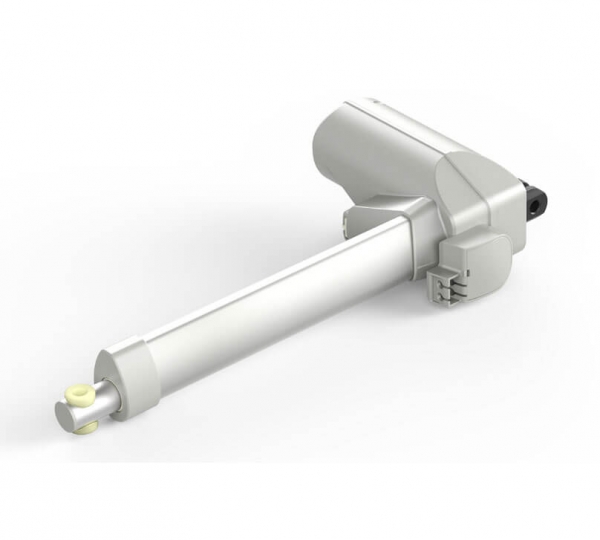

MK31-QR
Description
MK31-QR is an electric actuator designed for medical bed applications, with a maximum thrust of 4000N. It can support the mechanical emergency release handle design of the hospital bed, and the steel cable can be manually pulled to release the lead screw of the MK31-QR, so that the MK31-QR can quickly level the bed by gravity for medical emergency treatment of the patients in the bed.
Technical information
  • Input voltage: 24V DC
  • Max. load: 4000N (For thrust applications only, not for use in pull)
  • Self-locking ability: 4000N
  • Max. speed at no load: 6.8 mm/sec (Typical value)
  • Speed at full load: 4.9 mm/sec (Typical value @4000N Loaded)
  • Quick Release function, Load: 50~200 kg
  • Stroke: 50 ~ 400 mm
  • Noise level: ≦50dB
  • IP Protection level: IPX6 (static, non-action)
  • Aluminum outer tube
  • Detachable cable plug
  • Color: Light gray RAL 7035
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: +5°C ~ +40°C
  • Storage ambient temperature: -25°C ~ +65°C
  • Certified: CE Marking, EN 60601-1, EN 60601-1-2, BS EN 60601-1-2, IEC 60601-1-2
Option
  • Positioning signal feedback with Hall effect sensor x 2
  • Mechanical push only extension tube
  • Safety nut (in push direction)
Application
Medical Care
