LD3
Description
LD3 features its compact design, which is suitable for various applications that require limited installation space, such as window or gate opener, adjustable seat tilting and medical devices.
Technical information
  • Input voltage: 12V DC / 24V DC
  • Max. load: 1000N (Push / Pull)
  • Max. static load: 2500N (Push / Pull)
  • Speed at no load: 43.9mm/sec (Typical value)
  • Speed at full load: 5.5mm/sec (Typical value @1000N loaded)
  • Stroke: 50 / 100 / 150 / 200 / 250 / 300mm
  • Noise level: Please refer to Data Sheet
  • IP level: IP54
  • Preset limit switches
  • Duty cycle: 25%, max. 1 min. continuous operation in 4 min.
  • Operating ambient temperature: -25°C ~ +65°C
  • Certified: CE Marking, Electromagnetic Compatibility Directive 2014/30/EU (for LD3 only)
Option
  • Medical version (LD3M, compliance with EN 60601)
  • Quiet version (LD3Q, noise level ≦55dB)

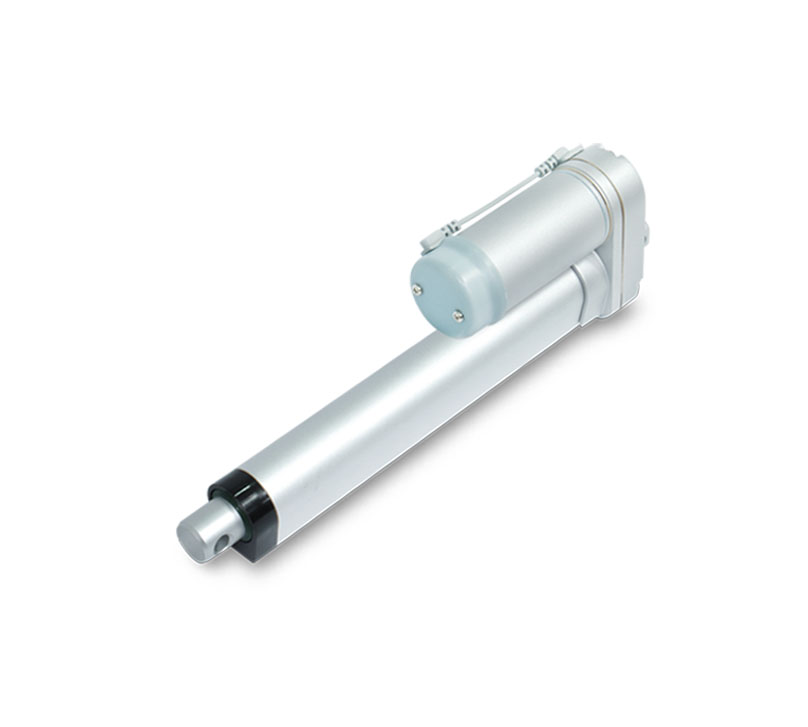

  • Positioning signal feedback with Hall effect sensor x 1
  • Positioning signal feedback with Hall effect sensor x 2

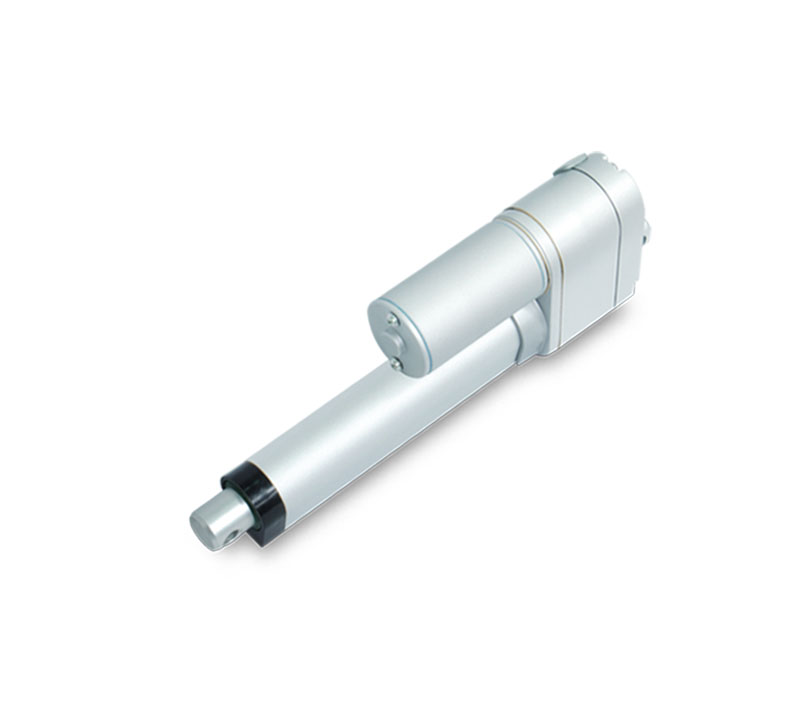

  • Analog positioning feedback with Potentiometer (POT)
  • IP level: IP65
Application
Furniture
Office
Leisure & Recreation
Medical Care
Industrial
Outdoor
Agriculture
