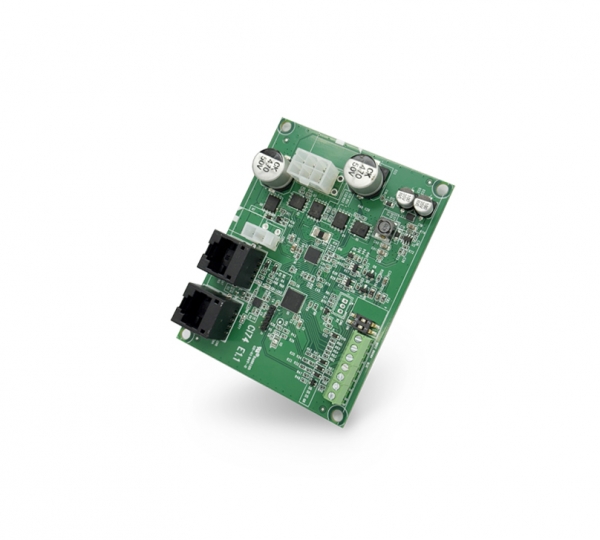

CI74
Description
CI74 is a controller suitable for industrial applications. It allows the customer's PLC/PC host controller to control the actuator using commands that comply with the Modbus RTU communication protocol through the RS-485 network. Each CI74 only controls one actuator, but multiple CI74s can be connected using the CAT-5 or higher network cables to form a multi-actuator control system, and the number of actuator groups can be added flexibly. The use of bus communication makes wiring brief, and because CI74 is widely compatible with Moteck's mainstream DC actuator models, it is possible to integrate simple DC actuators into the user's existing Modbus control network through CI74 control board.
Technical information
  • Input voltage: 12 ~ 29V DC (same as actuator power output)
  • Actuator power output: Same as input voltage
  • Max. current: 16A
  • Max. number of actuator: 1 channel
  • Control platform: Modbus RTU communication protocol
  • Function version: CI74-D / CI74-P / CI74-B, there are three function options in this model.
    (For CI74-P, the actuator's motion control can only be controlled through I/O terminals and cannot be controlled through Modbus messages; CI74-B is just the opposite and can only be controlled through Modbus messages.)
  • Supports single Hall or dual Hall effect sensors (NPN type only) positioning feedback
  • Support actuators with or without stroke limit switches
  • Provides Moteck CI74 PC tool for setting parameters and control actuators
  • 1500mm long USB to RJ45 PC setting cable (Users must have at least one, please purchase separately.)
  • LED operation indicator
  • Duty cycle: 25%, max. 2 min. continuous operation
  • Operating ambient temperature: -20°C ~ +55°C
  • Storage ambient temperature: -40°C ~ +70°C
  • Comes with 4 plastic PCB spacers
  • Comes with a 100mm power cord
  • Optional:
    - DIN rail holder (for mounting on DIN NS 32 or NS 35/7.5 rail)
    - 0.25W 120Ω terminating resistor (Available for purchase as needed)
Download
Application
Industrial
