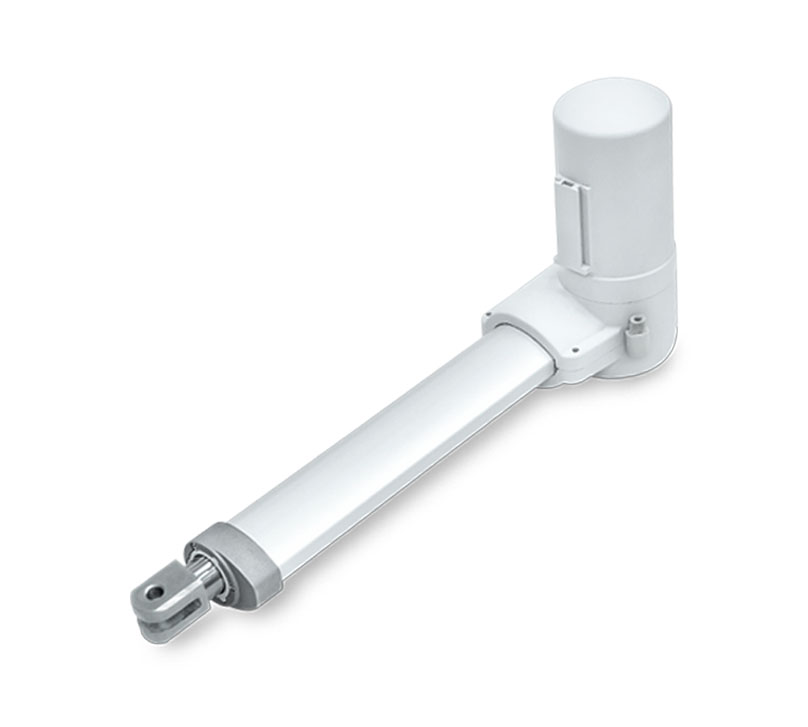

MD82 is a quiet and powerful actuator up to 8000N thrust, which is designed for use in a variety of medical and home care applications such as patient hoist and bed.
Technical information
  • Main applications: Medical, Home care
  • Input voltage: 24V DC
  • Max. load: 8000N (push) / 6000N (pull)
  • Typical speed at no load: 8.2 mm/sec
  • Typical speed at full load: 4.8 mm/sec (8000N load)
  • Stroke: 50 ~ 400 mm
  • Noise level: ≦50dB
  • IP Level: IPX4, IPX6 (static, non-action)
  • Rear connector’s pivot oritention can be chosen in every 30 degrees
  • Preset limit switches
  • Steel extension tube
  • Color: Light gray RAL 7035
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Ambient operation temperature: +5°C ~ +40°C
  • Storage ambient temperature: -25°C ~ +65°C
  • Certified:
    - CE Marking, EN 60601-1-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-8
    - Directive 2011/65/EU (RoHS) and commission delegated Directive (EU)2015/863﹑(EU)2017/2102
  • Positioning signal feedback with Hall effect sensor x 2
  • Mechanical push only extension tube
  • Safety nut (in push direction)
  • MR3 manual release: To retract actuator slowly and put down the patient safely by turning the MR3 knob with hand when losing power in the application of patient hoist.
