CM43
Description

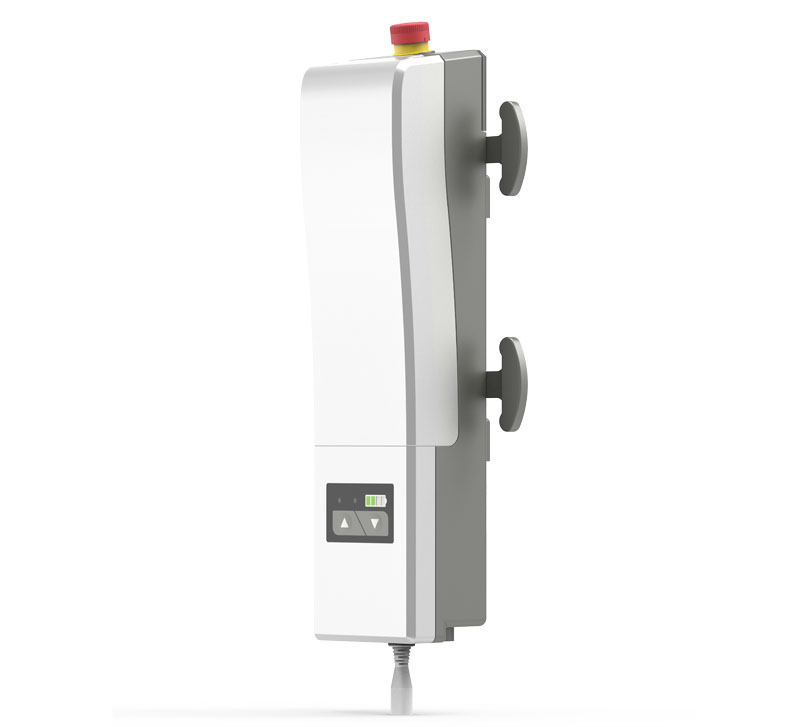

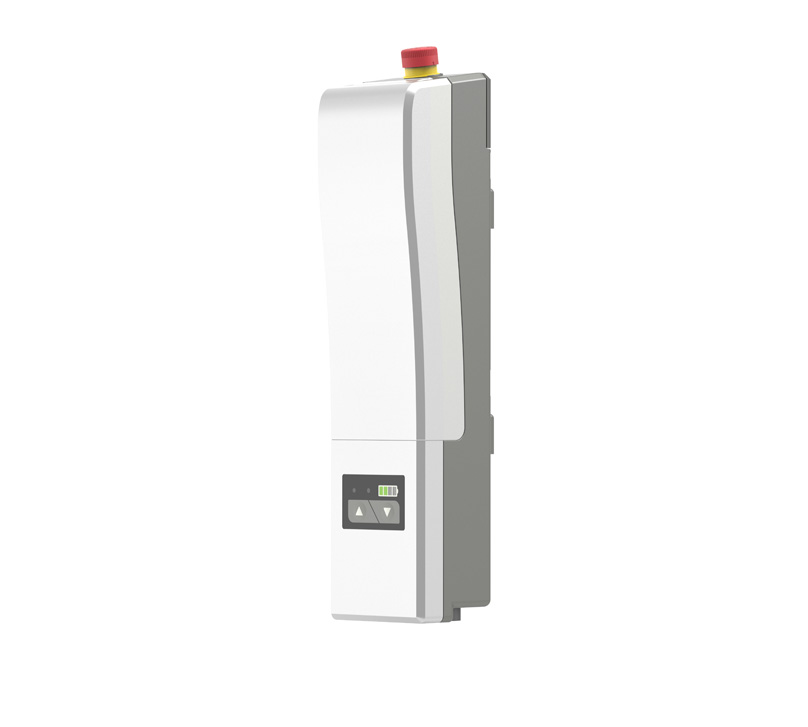

The CM43 control box is dedicated to patient hoist and stand-up lift for medical care purposes. With BT43 lead-acid battery box as its power source, it is convenient for quick replacement and continuous use, so it can be applied to professional medical places with high working frequency, and there are 2.9Ah or 5.0Ah battery capacities to choose from. You can also purchase the CH43 charging dock to charge the spare BT43 battery boxes.
For user with lower usage rate, built-in charging power supply is a suitable choice. When not in use, plug the control box (with BT43) into AC power to charge the battery.
The practical and beautiful design is also suitable for home care. In case of emergency during use, press the emergency stop button to cut off the battery and stop the actuator immediately.
Technical information
  • Use BT43 lead-acid battery box as power source, input: 24V DC
  • Max. Number of actuators: 2 channels
  • Max. Number of controls: 1 channel
  • Auto power off
  • Adjustable over-current protection: lift actuator 6~11A (Need a "setting hand control")
  • LED indication of charging and usage status
  • Charging reminder buzzer
  • Duty cycle: 10%, max. 2 min continuous operation in 20 min.
  • Operating ambient temperature: +5°C∼+40°C
  • Storage temperature: -10°C∼+50°C
  • IP Level: IPX4 (only applies when the BT43 battery box is connected to CM43 control box)
  • Electric shock protection level: Class II
Option
  • Optional Internal SMPS charger:
  1. Charge Input: 100~240V AC,50/60 Hz (SMPS)
  2. Optional charging power cord according to regional plug type
Application
Medical Care
