MD120
Description

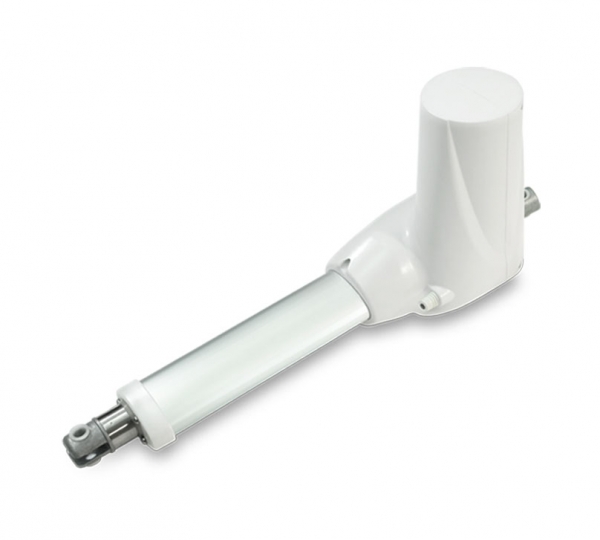

MD120 is a quiet and powerful actuator, which can push up to 12,000N. It’s designed for use in a variety of medical and home care applications, such as patient hoist and medical bed.
Technical information
  • Input voltage: 24V DC
  • Max. load: 12,000N (push) / 6,000N (pull)
  • Typical speed at no load: 6.9 mm/sec
  • Typical speed at full load: 5.2 mm/sec (12,000N load)
  • Stroke: 100 ~ 400 mm
  • Noise level: ≦50dB
  • IP Level: IPX4
  • Safety nut (in push direction)
  • Preset limit switches
  • Aluminum outer tube
  • Stainless extension tube
  • Color: Light gray RAL 7035
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Ambient operation temperature: +5°C ~ +40°C
  • Certified: CE Marking, MDD Directive 93/42/EEC
Option
  • Mechanical push only extension tube
  • Electrical push only function
  • IPX6 level

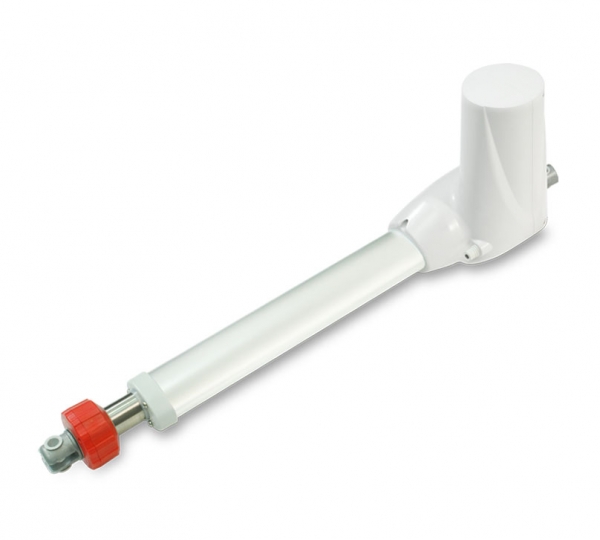

  • MR3 manual release: To retract actuator slowly and put down the patient safely by turning the MR3 knob with hand when losing power in the application of patient hoist
  • Pivot orientation 90° turned for rear connector
Download
Application
Furniture
Medical Care
