MD51
Description

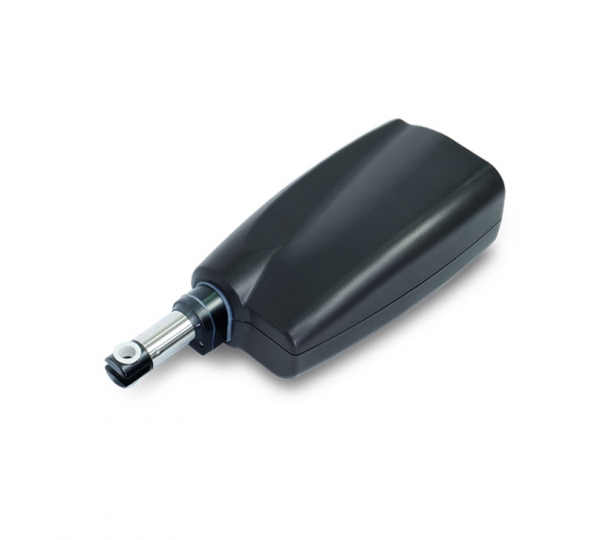

MD51 is a compact and powerful actuator up to 3500N thrust, which is designed for the use in medical care application, such as patient lift nursing chair and wheel chair.
Technical information
  • Input voltage: 24V DC
  • Max. load: 3500N (push) / 2000N (pull)
  • Typical speed at no load: 11.4 mm/sec
  • Typical speed at full load: 3.8 mm/sec @ 3500N
  • Stroke: 100 ~ 600 mm
  • Noise level: ≦65dB
  • IP Protection level: IP66
  • Color: Black
  • Present limit switches
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Ambient operation temperature: -20°C ~ +60°C
  • Certified: CE Marking, EN 60601-1, IEC 60601-1, IEC 61000-4-2, IEC 61000-4-3,
    IEC 61000-4-8 (F3 only)
Option
  • Mechanical push only extension tube
Download
Application
Medical Care
