MK31
Description

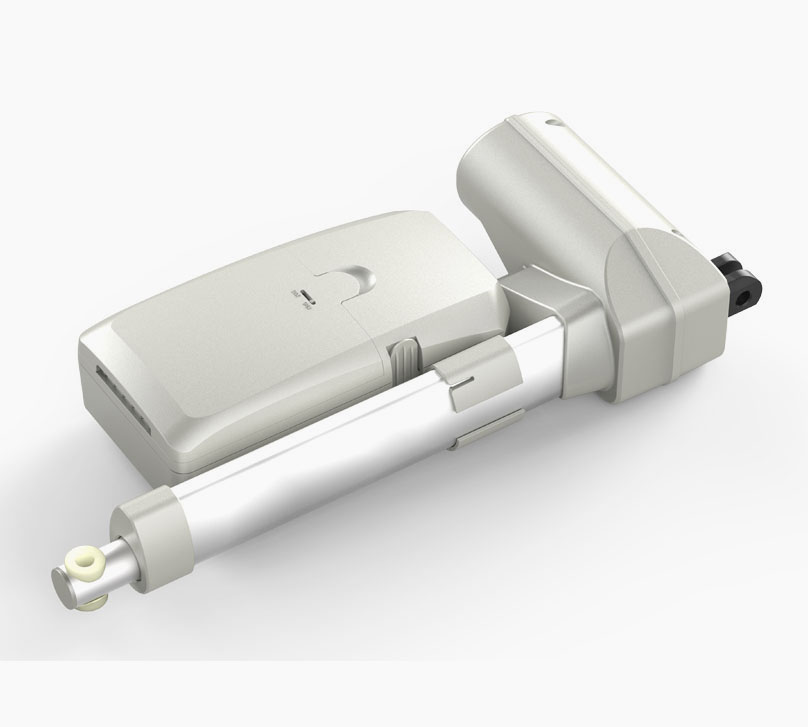

MK31 is a quiet and powerful actuator up to 6000N thrust, designed for use in medical bed application.
Technical information
  • Input voltage: 24V DC
  • Max. load: 6000N (Push) / 3000N (Pull)
  • Self-locking ability: 6000N
  • Max. speed at no load: 16.4 mm/sec (12mm pitch)
  • Speed at full load: 4.4 mm/sec (4mm pitch, 6000N load)
  • Stroke: 50 ~ 400mm
  • Noise level: ≦50dB
  • IP level: IPX6 (static, non-action)
  • Preset limit switches
  • Aluminum outer tube
  • Detachable cable plug
  • Color: Light gray RAL 7035
  • Certified: CE Marking, EN 60601-1, EN 60601-1-2, BS EN 60601-1-2, IEC 60601-1-2
  • Optional Positioning signal feedback with Hall effect sensor x 2
  • Optional Safety nut (in push direction)
  • Optional Mechanical push only extension tube
Usage
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: +5°C to +40°C
  • Transport and storage temperature: -10°C to +50°C
  • Relative humidity: 20% to 85%
  • Atmospheric pressure: 71 kPa to 101.3 kPa
  • Height above mean sea level: Max. 3,000 meters
Download
Application
Medical Care
