LD60
Description

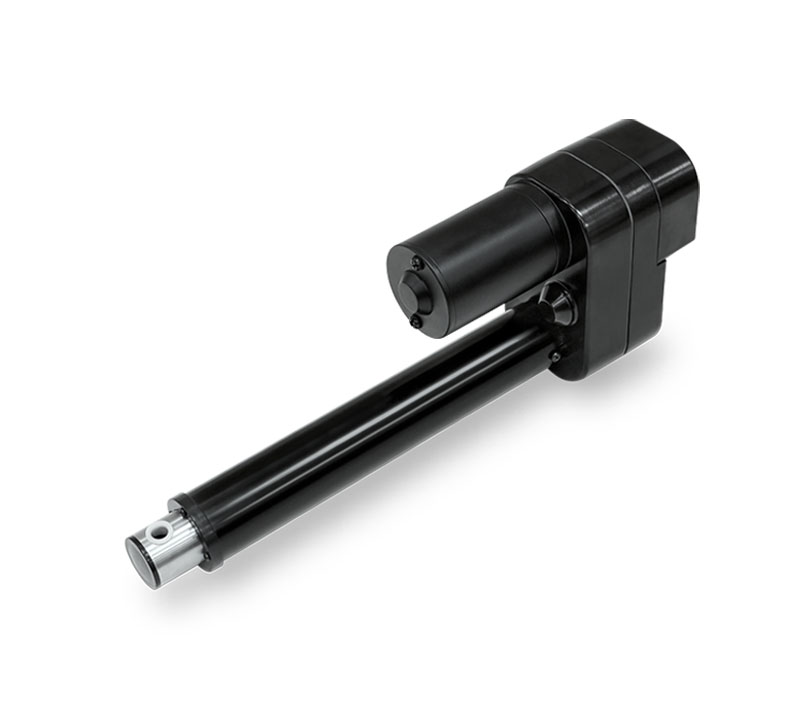

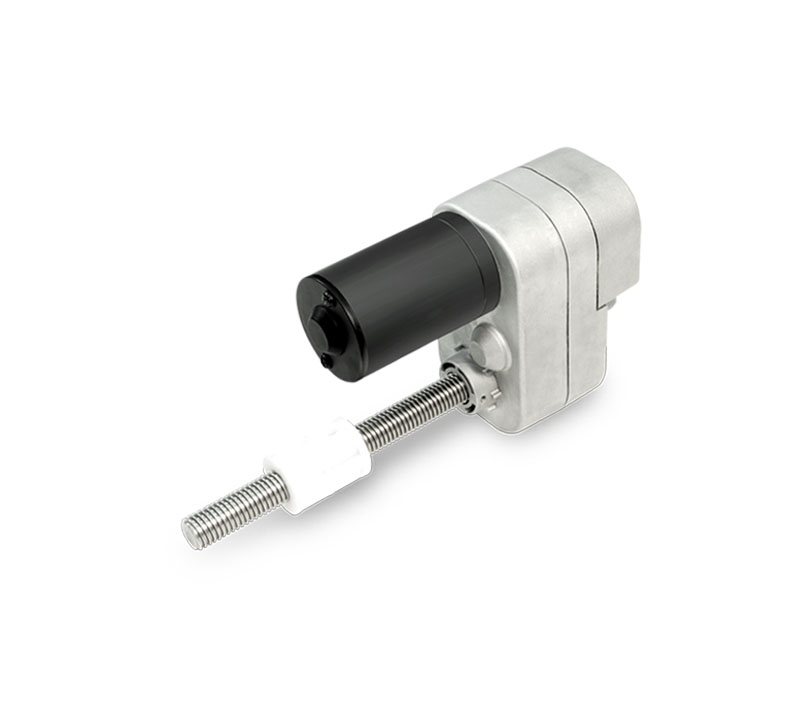

LD60 is a robust linear actuator designed for furniture and medical care application. Both of the gearbox and rear connector are made of aluminum alloy. It can be without inner / outer tubes, and use the bare screw nut as front connector, which allows bigger stroke in confined spaces.
Technical information
  • Input voltage: 24V DC
  • Max. load: 6000N (push/pull)
  • Typical speed at no load: 8.4 mm/sec
  • Typical speed at full load: 4.9 mm/sec
  • Stroke: 100 ~ 400 mm
  • Aluminum alloy outer tube and gearbox
  • Preset cam type limit switches
  • Noise level: ≦52dB
  • Duty cycle: 10%, max. 2 min. continuous operation.
  • Ambient operation temperature: -10°C ~ +60°C
  • IP Protection level: IPX2
  • Certified: CE Marking, EN 60601-1-2, IEC 60601-1-2
Option
  • Standard / fast version
  • Without extension tube and outer tube
  • Rear connector turns 90° in pivot orientation
  • Black color outer tube and gearbox
Download
Application
Furniture
Medical Care
