BD62
Description

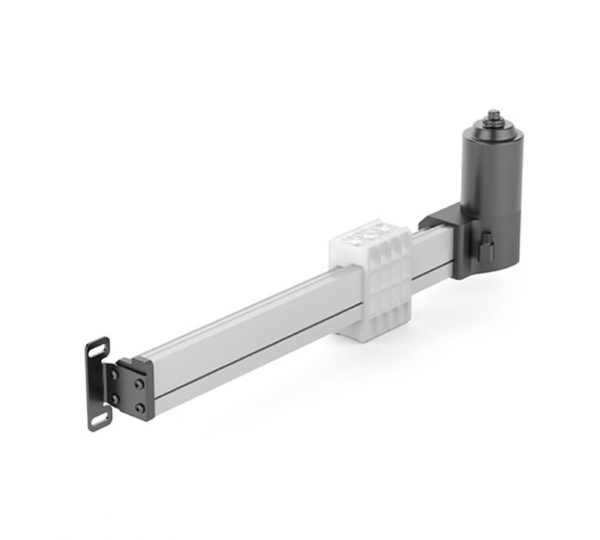

BD62 compact electric actuator belongs to the design concept of slider-type linear motion, which can obtain a larger stroke with a smaller installation size and can be applied in both push and pull directions. The compact size design is an ideal driving solution in the fields of furniture, home care, and fitness equipment.
Technical information
  • Input voltage: 24V DC
  • Max. load: 3000N (Push / Pull)
  • Max. speed at no load: 6.2mm/sec (Typical value)
  • Speed at full load: 3.8mm/sec (Typical value @3000N loaded)
  • Stroke: 100 ~ 1000mm
  • Noise level: ≦55dB
  • Preset limit switches
  • Front end cover has the metal plate for fixing
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: -20°C ~ +65°C
Option
  • Positioning signal feedback with Hall effect sensor x 2
Download
Application
Furniture
Office
Leisure & Recreation
