DPA-87-2930-C8

Comparison
Inquiry
DPA-87-2930-C8
Description

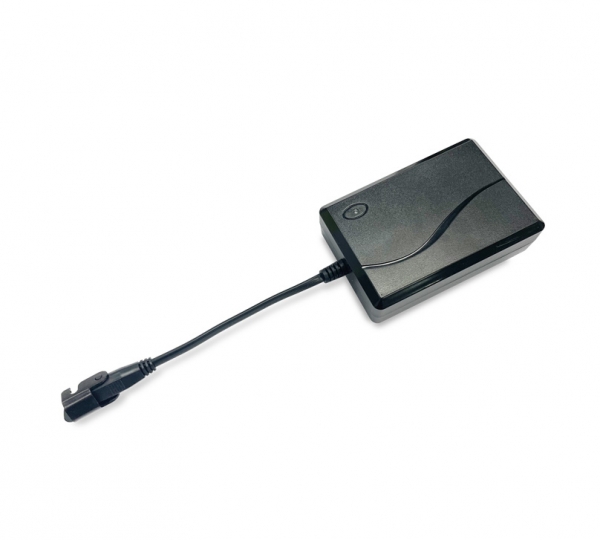

DPA-87-2930-C8 is a desktop type switching power adapter that outputs 29V DC/3A. It has low noise level and low standby power consumption.
Technical information
  • Input:
    - Input voltage: 100V AC ～ 240V AC 60/50Hz
    - Standby power consumption: < 0.15W @ no load
  • Output:
    - Output voltage: 29V DC
    - Output current: 3.0A
  • Protection function:
    - Input over current protection
    - Output over voltage protection
    - Output over current protection
    - Output short circuit protection
    - Over load protection
  • Operating environment:
    - Operating ambient temperature: 0°C ～ +40°C
    - Operating ambient humidity: 20% ～ 90% RH
    - Storage temperature: -20°C ～ +70°C
    - Storage humidity: 20% ～ 90% RH
  • Others:
    - Color: Black
    - Electric shock protection level: Class II
    - AC power cord: 2000mm/ 3000mm, US or CEE 7/16 EU AC plug
    - Certified: EN55014 Class B, EN61000
Download
Application
Furniture
