CS1
Description

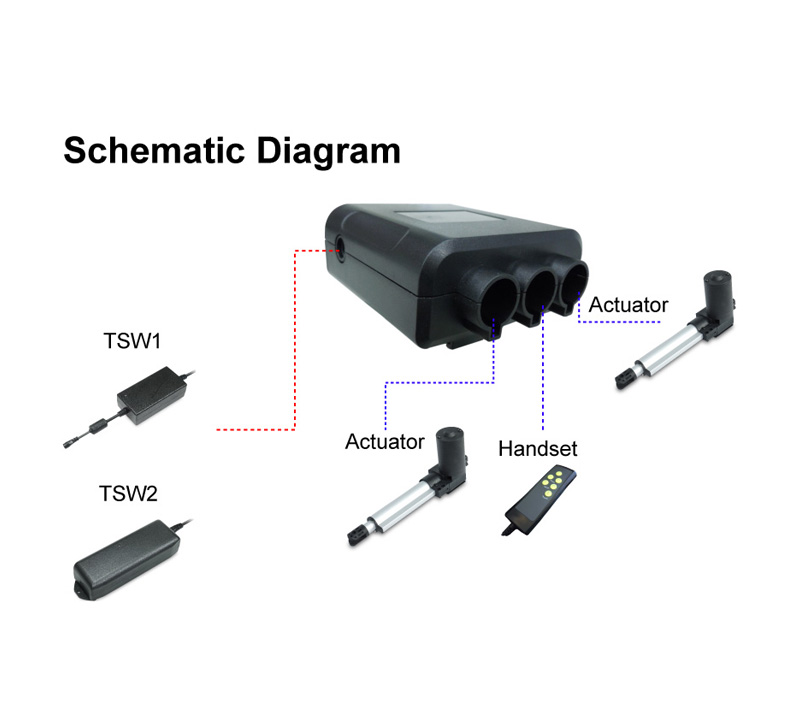

CS1 is a small and light control box with 2 actuators driving capability. It is designed to be compatible to the mainstream products in Moteck and it provides a better choice of narrow space application. CS1 gets power from the external SMPS (switching mode power supply) and there are several models are compatible.
Technical information
  • Input voltage: 29V DC
  • Power in: External SMPS (switching mode power supply)
  • Output voltage: 29V DC
  • Output rated current: 3.0A (per channel)
  • Max. number of actuators: 2 channels
  • Max. number of controls: 1 channel
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • PTC thermistor over-current protection
  • IP level: IP42
  • Color: Black, Gray RAL 7001
  • DC power cord: 1000mm straight, DIN 41529 male plug at both ends.
  • Operating ambient temperature: +5°C ~ +40°C
  • Certified: CE Marking, EMC Directive 2014/30/EU
Option

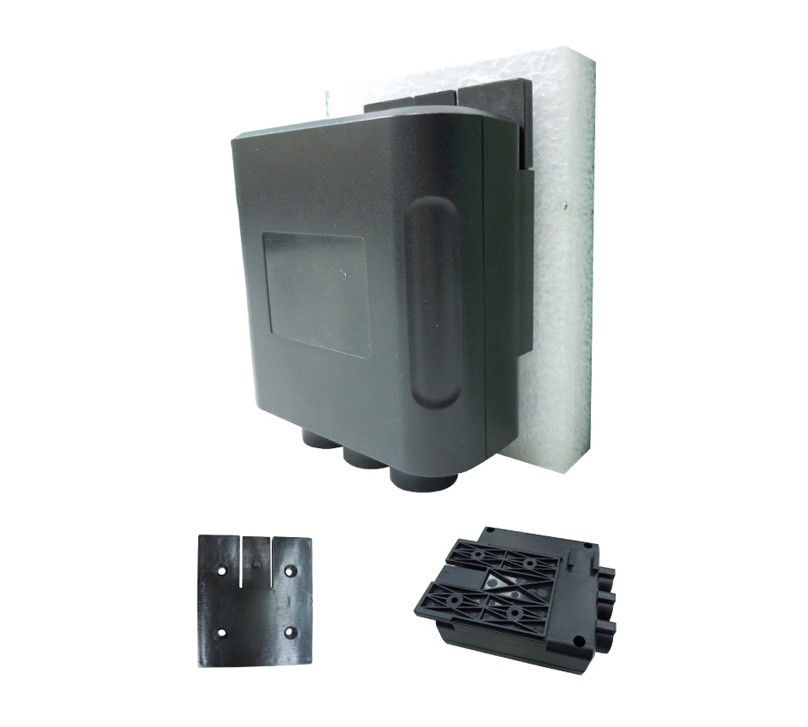

  • Mounting plate: to fix on flat surface with screws

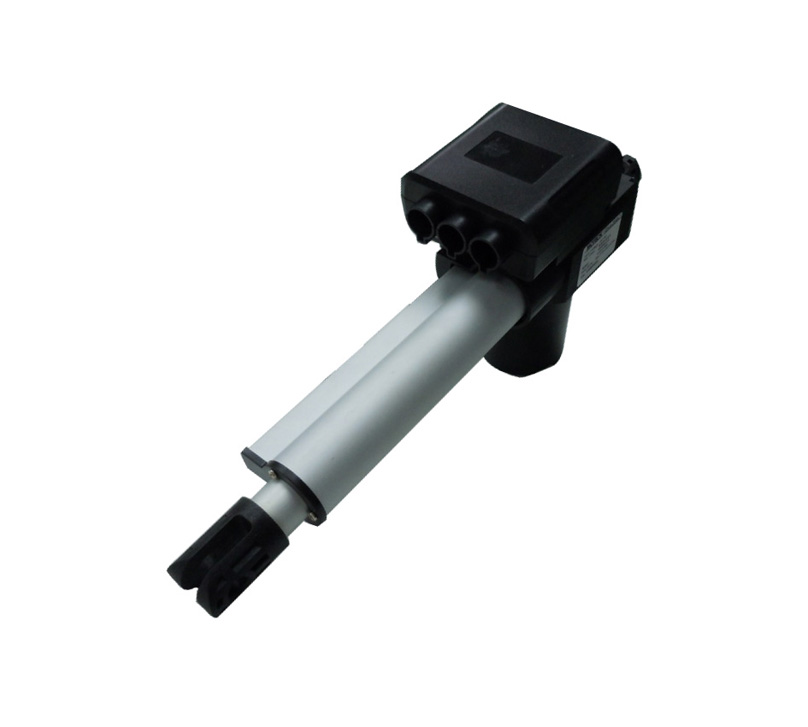

  • Fixed on FD60 actuator with plastic adapter and screw
Download
Application
Furniture
Office
Leisure & Recreation
