HM
Description

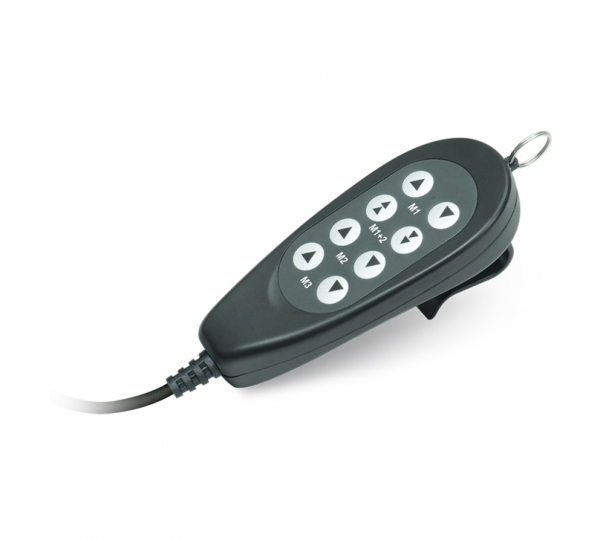

HM is designed for home care and furniture applications which can work well with Moteck standard control box and double motor, such as T-control, CBT2, CB3T, CB4M, CS1, CS2, TW61.
Technical information
  • Max. motor number to control: 3
  • Available number of buttons: 2, 3, 4, 6 or 8
  • Color: Black, light grey RAL 7035
  • Operation indicator
  • With hook for easy placement (30mm gap)
  • Cable length: Total 880mm long with 420mm spiral
  • Options:
    - Joint movement for 2 motors
    - Synchronous movement
    - Supports position memory function
    - Supports stroke learning function
    - 50mm hook gap
    - Safety key
Download
Application
Furniture
