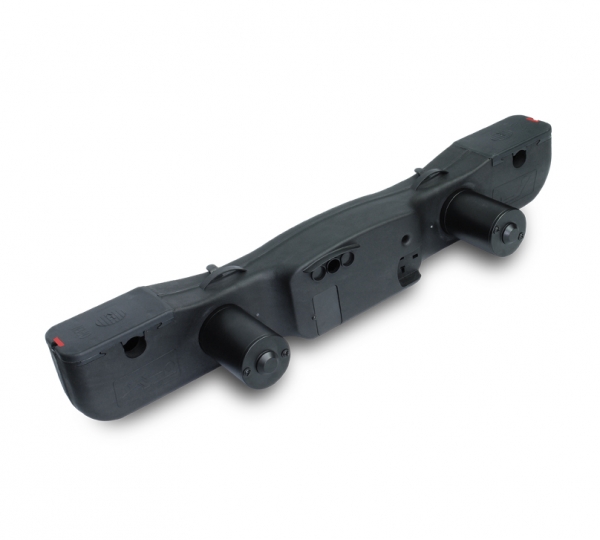

TW61 double motor is a one-piece design, combining double motors and a control unit, the installation steps are simple and fast, which can save labor for installing the bed frame. In addition, the complete shell protection can achieve basic dust and waterproof effects. Suitable for adjustable furniture beds.
Technical information
  • Max. load: 2 x 6000N
  • Speed at no load: 5mm/sec (typical value)
  • Stroke: 29 ~ 87mm
  • Input voltage: 100V AC ~ 240V AC, 60/50Hz
  • Output voltage: 29V DC
  • Power supply: Internal SMPS, 29V/2A (58W)
  • Max. number of controls: 1 channel
  • Max. number of additional actuators: 2 channels (24V DC)
  • Electric shock protection level: Class II
  • AC Power cord length: 3000mm
  • Noise level: ≦55dB
  • IP level: IP43
  • Color: Black
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Emergency lowering against power outage, to retract double motor with 9V batteries (not included)
  • Operating ambient temperature: -20°C ~ +65°C
  • Certified: CE marking, EMC Directive 2014/30/EU and LVD Directive 2014/35/EU (Basic function version only)
  • Position memory function with Hall effect sensors
  • IP level: IP54
  • Color: Light grey (RAL 7035)
