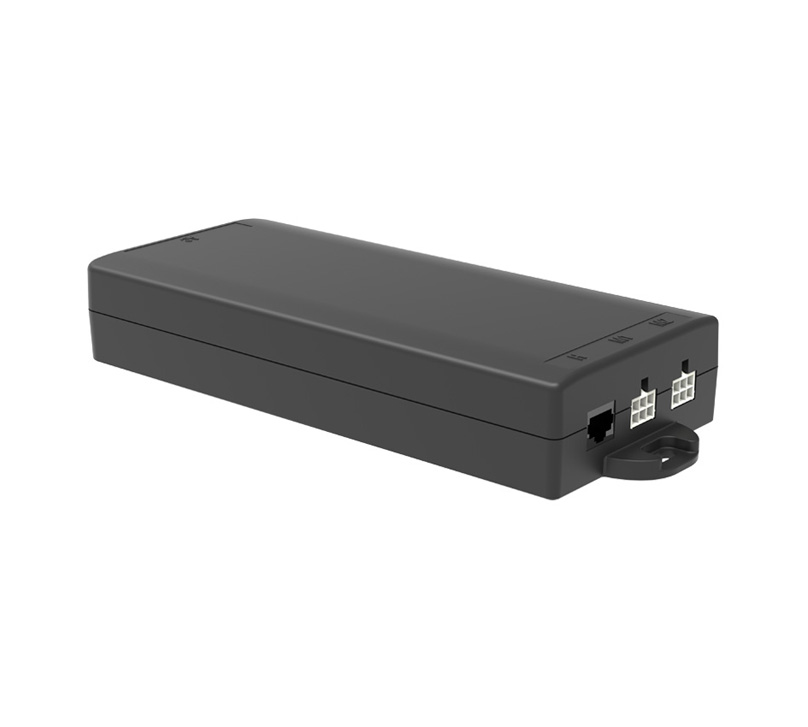

CF11
Description
CF11 control box series can drive up to 2 motors synchronously. The built-in switching power supply makes the control box very thin and easy to install. It can be divided into CF11D and CF11S versions according to functions. The feature of CF11D is to control the 2-motor lifting desk and support the anti-pinch function to ensure safety during use. The CF11S is characterized by the synchronization of two actuators for general applications, which is widely compatible with Moteck's standard actuators.
Technical information
  • Input: 100 ~ 240V AC, 50/60Hz (SMPS)
  • Output voltage: 32V DC
  • Output rated current: 6A in total
  • Power supply: Internal SMPS, 32V DC/4A (128W)
  • Max. number of motors: 2 channels (synchronization)
  • Max. number of controls: 1 channel
  • Over-current protection function
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Electric shock protection level: Class II
  • Color: Black
  • Power cord: Refer to Data Sheet
  • Position memory function
  • Soft start / stop function
  • Anti-pinch function (CF11D only)
Download
Application
Office
