DKM4-LF
Description

DKM4-LF is a DC gear motor with hollow shaft to drive an hex rod (not included). In addition to the compact size and low noise level, it also provides positioning feedbacks using dual Hall effect sensors to support advanced control functions. DKM4-LF is an economical and high quality drive solution, which possesses wide applications.

Technical information
  • Input voltage: 24V DC
  • Max. speed at no load: 110rpm after gear reduction
  • Max. torque: 7Nm
  • Dual Hall effect sensors positioning feedback
  • Hollow shaft: Hexagon 6mm diameter
  • Noise level: ≦53dB
  • IP Ievel: IP30
  • Color: Black
  • Power cord length: 1000mm straight
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: 0°C ~ +45°C
  • Certified: CE marking, EMC Directive 2014/30/EU
Option
  • Standard motor / High speed motor
Download

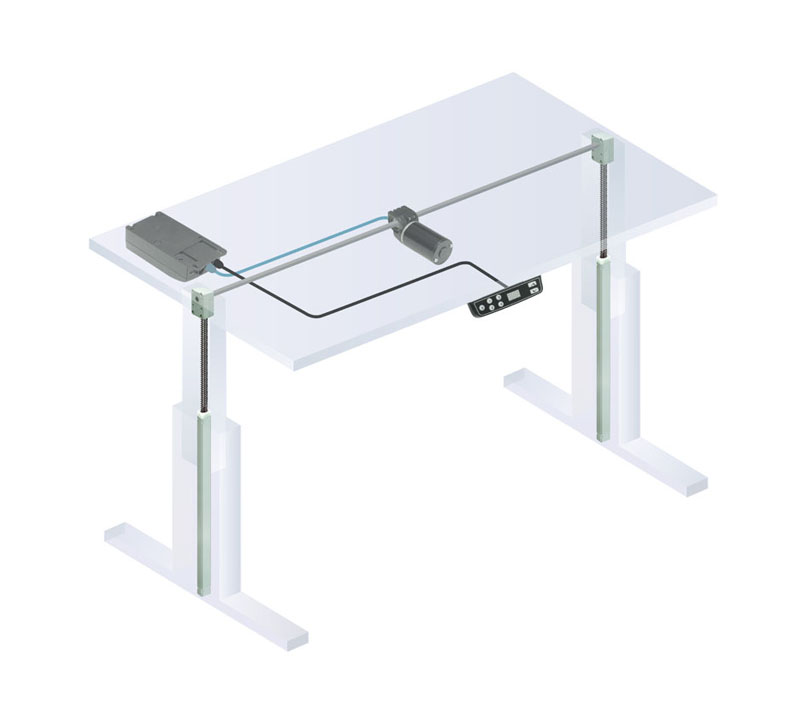

Application
Furniture
Office
