DKL3
Description

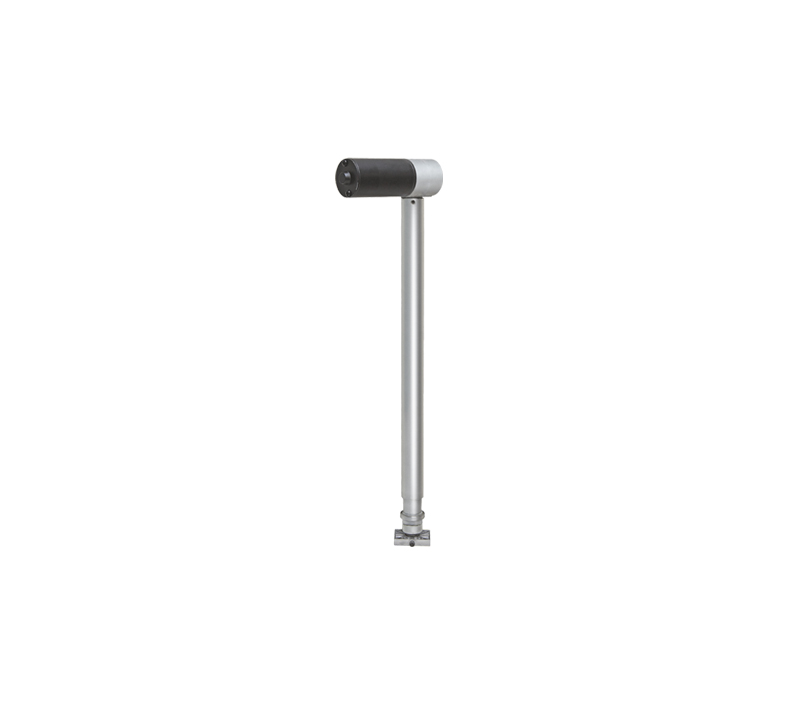

DKL3 is a 3-section leg mainly used for electric height adjustable tables. Customers can put DKL3 into the legs, either in square or round shape. The compact transmission design provides quiet and quick operation. Besides, the 3-section mechanism is ideal for adjustable tables that require smaller installation lengths and longer strokes.
Technical information
  • Input voltage: 24 ~ 32V DC
  • Max. push load: 1200N
  • Max. speed at no load: 45 mm/sec (typical value)
  • Speed at full load: 26 mm/sec (typical value @1200N loaded)
  • Stroke: 650mm
  • Life cycle: More than 10,000 cycle under full load
  • Positioning feedback with dual Hall effect sensors
  • Indoor use only
  • Noise level: ≦50dB
  • Duty cycle: 10%, max. 1 min. continuous operation in 10 min.
  • Certified: CE Marking, EMC Directive 2014/30/EU,
  • UL 962 Standard for Household and Commercial Furnishings.
Option
  • Power cord length: 1200, 2000mm
Download
Application
Furniture
Office
