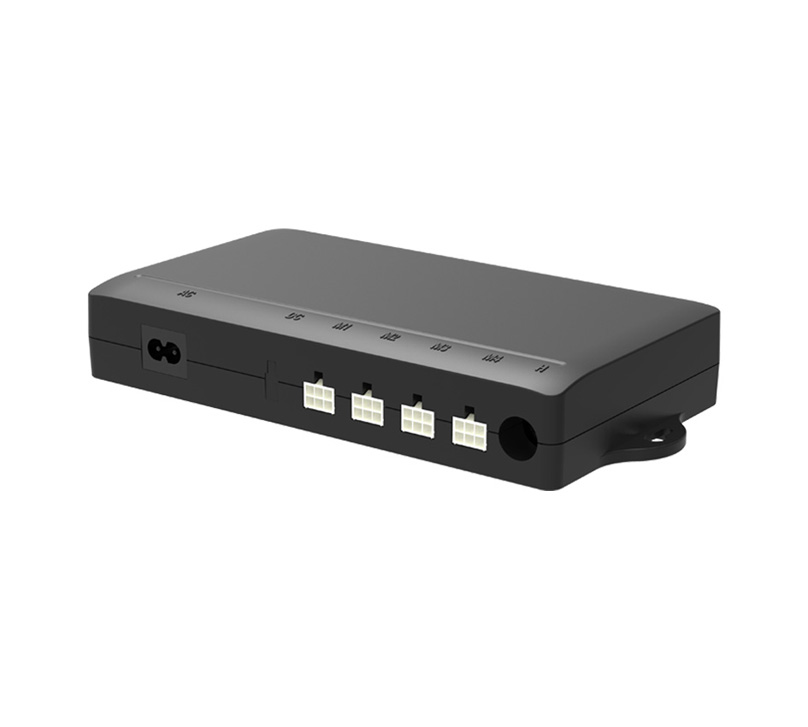

CF12S
Description
CF12S control box is programmed to drive 4 actuators synchronously. With internal SMPS, CF12S features lightweight and compact dimension for convenient installation. CF12S is ideal for furniture application especially it is compatible with mainstream products of Moteck actuators and handsets.
Technical information
  • Input : 100 ~ 240V AC, 50/60Hz (SMPS)
  • Output : 32V DC
  • Power supply: Internal SMPS, 32V DC/4A (128W)
  • Output rated current: 3.6A (per channel)
  • Max. number of actuators: 4 channels (synchronization)
  • Max. number of controls: 1 channel
  • Over-current protection function
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Electric shock protection level: Class II
  • Color: Black
  • Power cord: Refer to Data Sheet
  • Position memory function
  • Soft start / stop function
Download
Application
Furniture
Office
