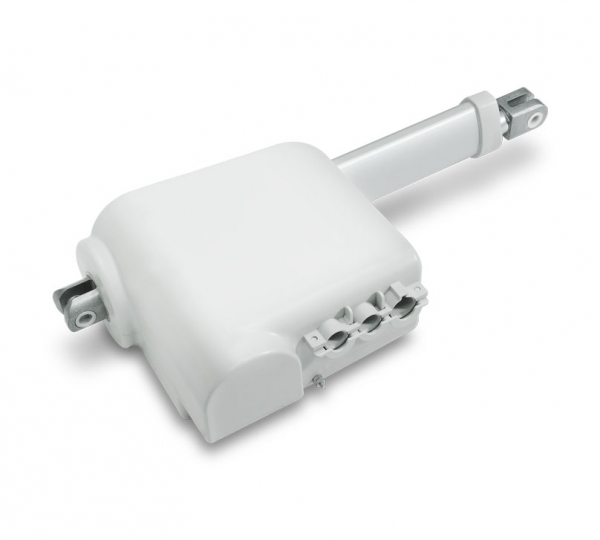

MD80M

Description

MD80M is a powerful actuator up to 8000N thrust, integrated with control unit and power supply in the housing.In addition to its own actuator, MD80M can connect up to additional 2 actuators and become a 3-motor driving system. MD80M is quiet and water-proof which is designed for use in a variety of medical and home care applications such as patient hoist, hospital bed, nursing bed…etc.

Technical information

Max. load: 8000N (push) / 6000N (pull)
Stroke: 50 ~ 400 mm
Preset limit switches
Steel extension tube
Input voltage: 230V AC 50Hz / 110V AC 60Hz
Power supply: 24V/8A Toroidal transformer
Output voltage: 24V DC
Max. number of controls: 1 channel
Max. number of additional actuators: 2 channels (except for own actuator)
Max. current: 6A per channel
Protection class: Class I
Noise level: ≦53dB
IP Protection level: IPX4 (static, non-action)
Color: Light gray RAL 7035
Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
Ambient operation temperature: +5°C ~ +40°C
Certified: CE Marking, EN 60601-1-2, IEC 61000-3-2,IEC 61000-3-3,
IEC 61000-4-2, IEC 61000-4-3,IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6,
IEC 61000-4-8, IEC 61000-4-11

Option

Mechanical push only extension tube
Safety nut (in push direction)
IPX5 protection level (static, non-action)
