MK41

Comparison
Inquiry
MK41
Description

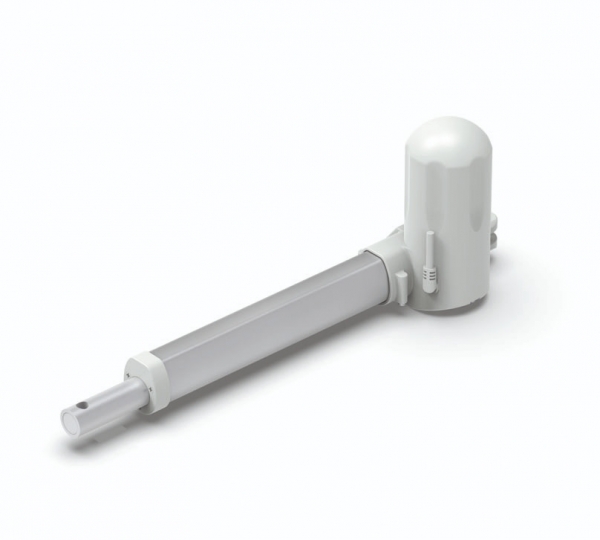

MK41 is a compact, high-load electric actuator specifically designed for ultra-low adjustable beds or nursing beds, providing a stable thrust of up to 8,000N. It is particularly suitable for beds with extremely low ground clearance, enhancing care safety and product flexibility. It is widely applicable in a variety of applications, including hospitals, long-term care facilities, and home care.
Technical information
  • Input voltage: 24V DC
  • Max. load: 8000N (Push) / 4000N (Pull)
  • Self-locking ability: 6500N
  • Max. speed at no load: 8.3mm/sec
  • Stroke: 50~300mm
  • Noise level: ≦50dB
  • IP Protection level: IPX6 (static, non-action)
  • Color: Light gray RAL 7035
  • Optional positioning signal feedback with hall effect sensor x 2
  • Optional mechanical push only extension tube
  • Optional safety nut (in push direction)
  • Optional mechanical brake
Usage
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: +5°C to +40°C
  • Transport and storage temperature: -10°C to +50°C
  • Relative humidity: 20% to 85%
  • Atmospheric pressure: 71 kPa to 101.3 kPa
  • Height above mean sea level: Max. 3,000 meters
Download
Application
Medical Care
