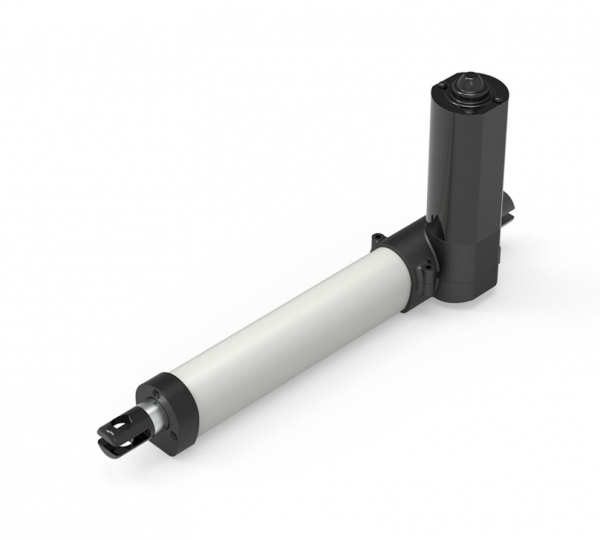

MK40

Description

MK40 is a slim actuator but providing a maximum thrust of 6,000N. This, combined with its short installation length, makes it ideal for applications in confined spaces.

Technical information

Input voltage: 24V DC
Max. load: 6,000N (Push) / 4,000N (Pull)
Max. speed at no load: 23.0mm/sec (Typical value)
Speed at full load: 2.7mm/sec (Typical value @6,000N loaded)
Stroke: 50～400mm
Noise level: ≦50dB
Preset limit switches
Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
Operating ambient temperature: -20°C～+65°C
Storage ambient temperature: -25°C～+65°C
Positioning: Optional digital positioning feedback with dual Hall effect sensors
Optional mechanical push only extension tube

Download

Application

Furniture
