MD57
Description

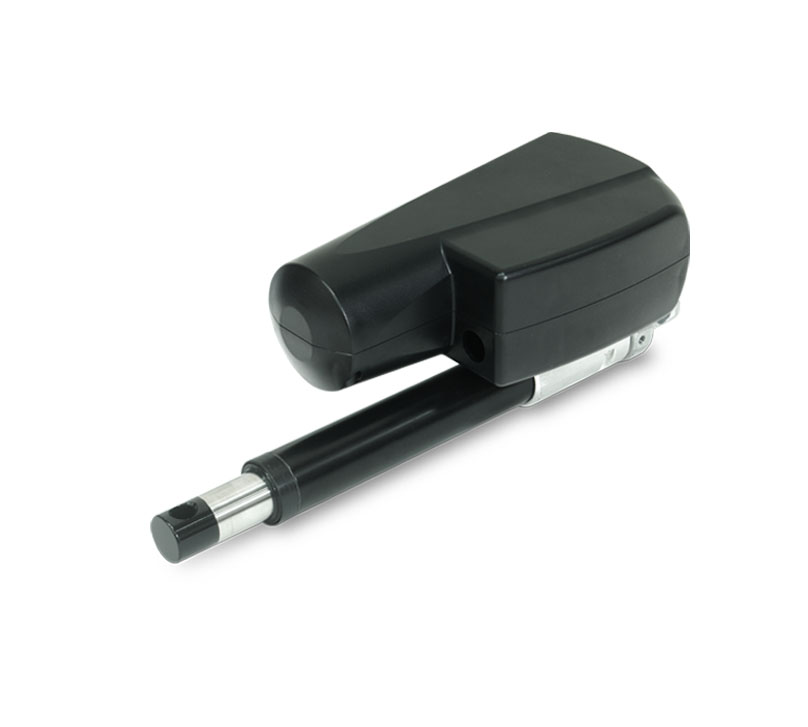

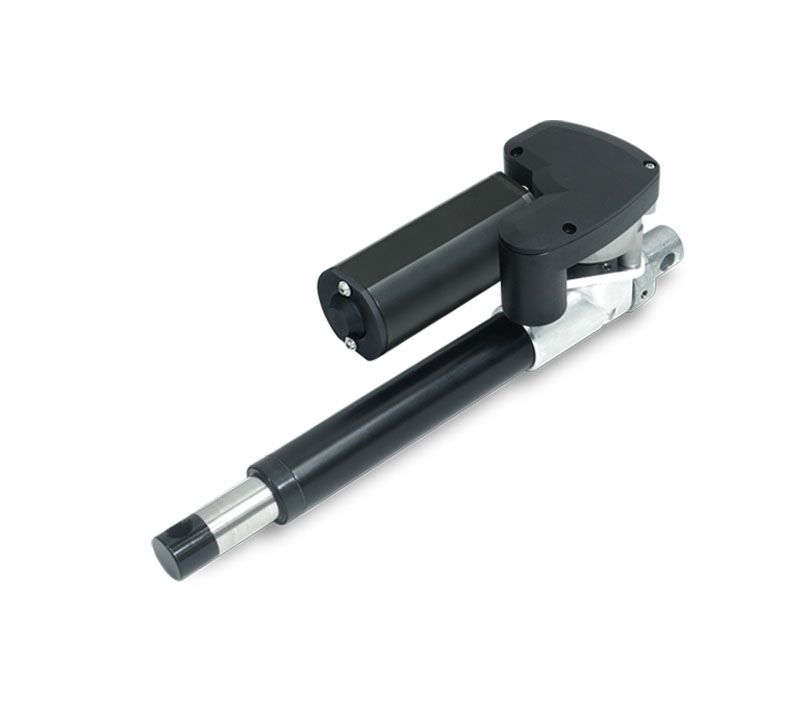

MD57 is a compact actuator that is suitable for wide range of applications including homecare, furniture, medical and industrial … etc. The motor orientation can be chosen in every 30 degrees of whole round, which makes it an ideal solution for applications where installation space is limited, such as electric wheelchairs. There are 4 kinds of housing according to different options like limit switch, positioning feedback, IPX6 protection and 12V DC high power motor.
Technical information
  • Spindle type: ACME screw
  • Input voltage: 24V DC / 12V DC
  • Max. load: 4000N (Push / Pull)
  • Max. speed at no load: 12.6mm/sec (Typical value)
  • Speed at full load: 3.5mm/sec (Typical value @4000N Loaded)
  • Stroke: 50 ~ 300mm
  • Motor orientation: 360° in steps of every 30°
  • Rear connector’s pivot orientation can be chosen in every 30 degrees.
  • Noise level: ≦65dB
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: -20°C ~ +65°C
  • Certified: CE Marking, MDD Directive 93/42/EEC
Option
  • 12V DC high power motor
  • Analog positioning feedback with Potentiometer (POT)
  • Positioning signal feedback with dual Hall effect sensors
  • Preset cam type limit switches
  • IPX6 waterproof case
