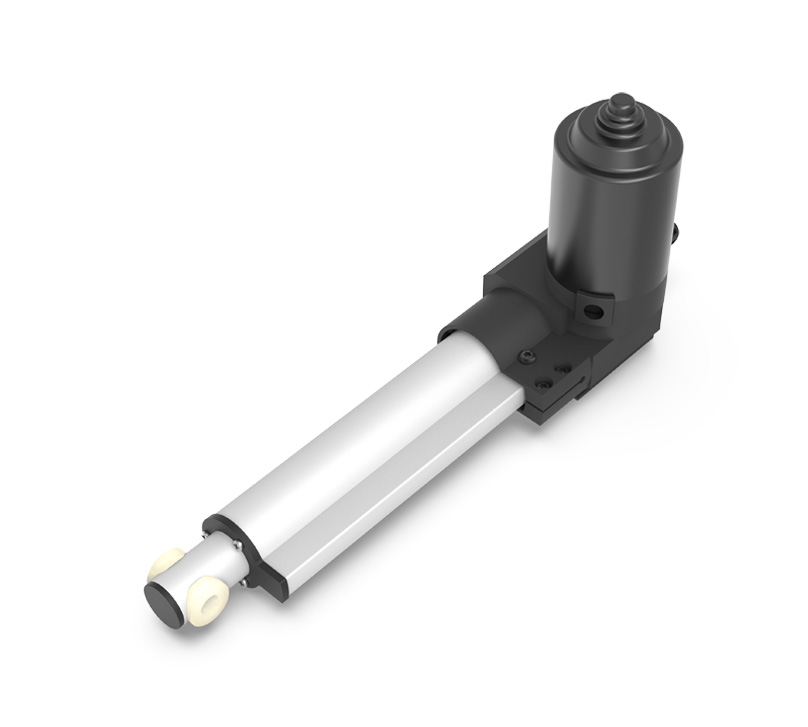

Linear Actuator MK60

Comparison

Q'ty :

Inquiry

MK60

Description

MK60 features a similar appearance and load characteristics as FD60 with maximum push force of 6,000N. It adopts a more compact motor and operates quietly, making it a good value actuator. For care bed applications, MK60 is a competitive and good choice.

Technical information

24V Permanent-Magnet Brushed DC Motor
Max. load: 6,000N (Push) / 4,000N (Pull)
Max. speed at no load: 15.6mm/sec (16mm pitch)
Speed at full load: 2.6mm/sec (4mm pitch @6,000N loaded)
Stroke: 50～300mm
Noise level: ≦50dB
IP level: IP42 (static; non-action)
Preset limit switches: When the actuator is stopped at either end of the limit switch position, the self-locking ability by motor short-circuit is not supported. However, when stopped at any other position in the middle, the motor short-circuit could be supported for self-locking (depending on control).
Positioning: Optional digital positioning feedback with dual Hall effect sensors
Optional mechanical push only extension tube
Optional mechanical brake (can brake to the maximum push-pull force of the selected motor type)
