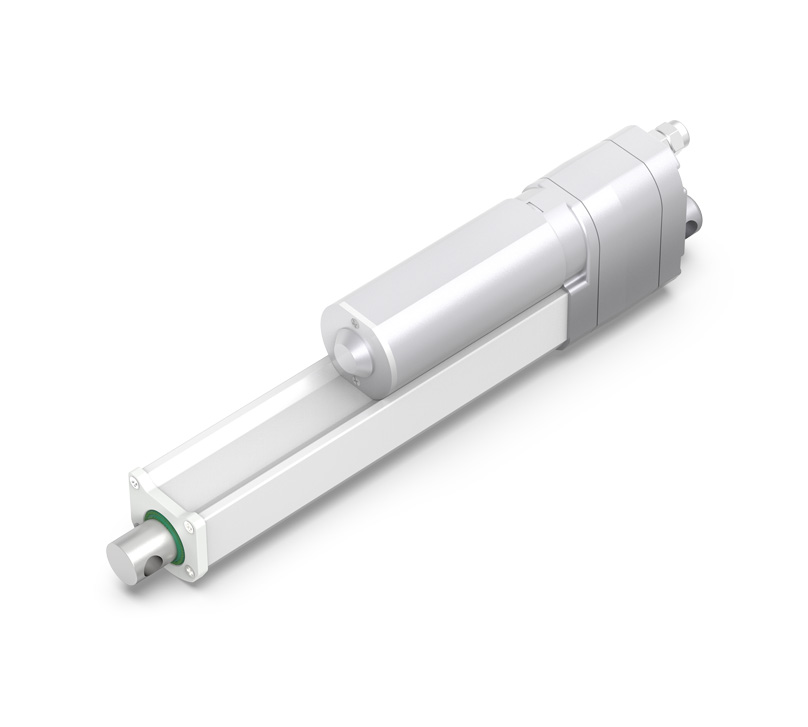

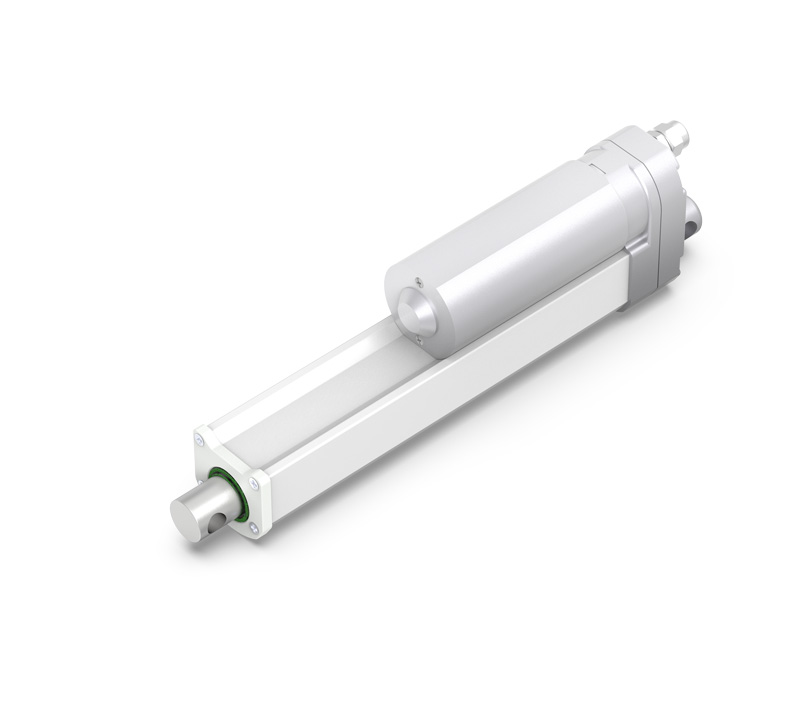

MK52
Description
The MK52 linear actuator has a maximum thrust of 3,500 N and meets IP65/IP66, IP69K, or IPX8M protection ratings. The IPX8M version can be submerged in water up to 1.2 meters deep for short periods and can operate underwater. It is suitable for industrial, outdoor, and automated applications requiring high IP ratings.
Technical information
  • Input voltage: 12 / 24V DC
  • Max. load: 3500N (Push) / 2500N (Pull)
  • Max. static load: 4500N (Push / Pull)
  • Max. speed at no load: 20.5mm/sec (Gear ratio 10:1)
  • Speed at full load: 3.35mm/sec (Gear ratio 50:1 @3500N loaded)
  • Stroke: 100～500mm, one step every 50mm (Max. ≦500mm)
  • Positioning:
    - Optional digital positioning feedback with dual Hall effect sensors
    - Optional analog positioning feedback with Potentiometer (POT)
  • Preset limit switches
  • Aluminum grey
  • Salt spray tested for 120 hours
  • IP level:
    - IP65/IP66, IP69K (static)
    - IPX8M (Underwater at 1.2 meters for 30 minutes)
  • Noise level: ≦70dB
  • Duty cycle: 25%, max. 2 min. continuous operation in 8 min.
  • Operating ambient temperature: -25°C～+65°C
  • Storage ambient temperature: -25°C～+65°C
  • Cable length: 300, 900 mm
