MK50
Description

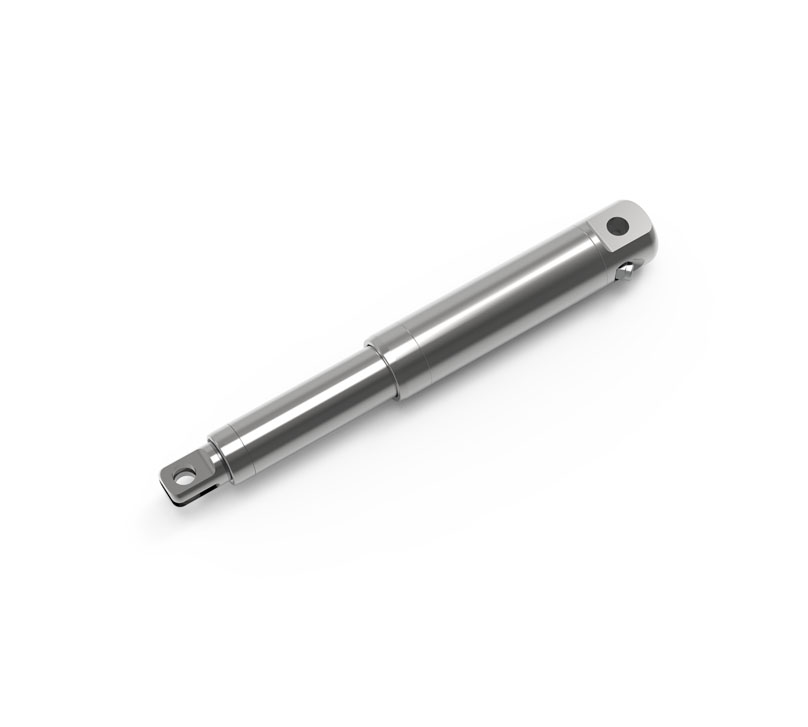

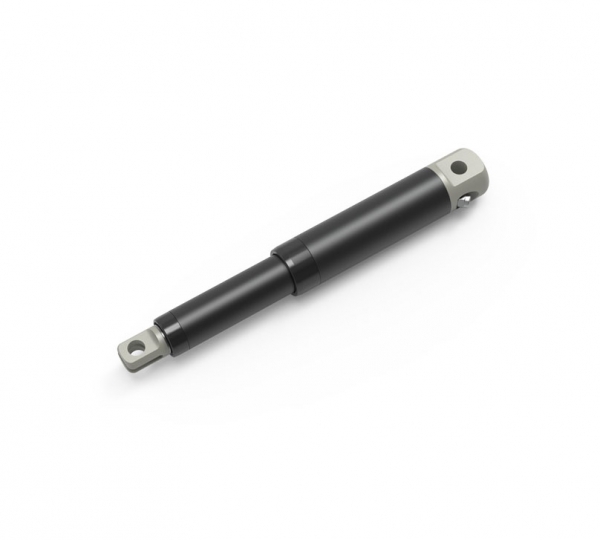

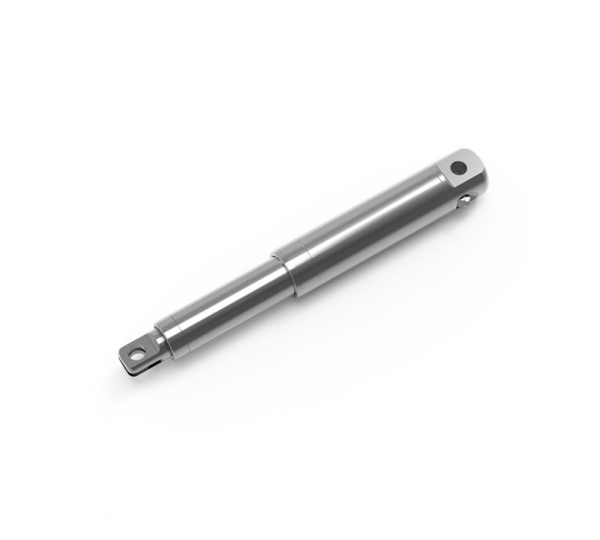

MK50 is a in-line shape linear actuator that provides push and pull forces up to 4,500N and has a high degree of IP protection. MK50 has DC 12V and 24V input voltage specifications, as well as a variety of performance options, suitable for industrial applications and general applications.
Technical information
  • Input voltage: 12V DC / 24V DC
  • Max. load: 4,500N (Push/Pull)
  • Max. static load: 4,700N (With plastic connectors)/ 16,800N (With aluminum alloy connectors)
  • Max. speed at no load: 34mm/sec (Performance option B)
  • Stroke: 50 ~ 750mm
  • Spindle type: ACME screw
  • Inner tube material: Stainless steel
  • Motor & Outer tube material: Black coating steel case (RAL 9005)
  • IP level: IP67/IP69K (Static; non-action)
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: -20°C ~ +70°C
  • Storage ambient temperature: -40°C ~ +70°C
  • Option: Digital positioning feedback with dual Hall effect sensors
