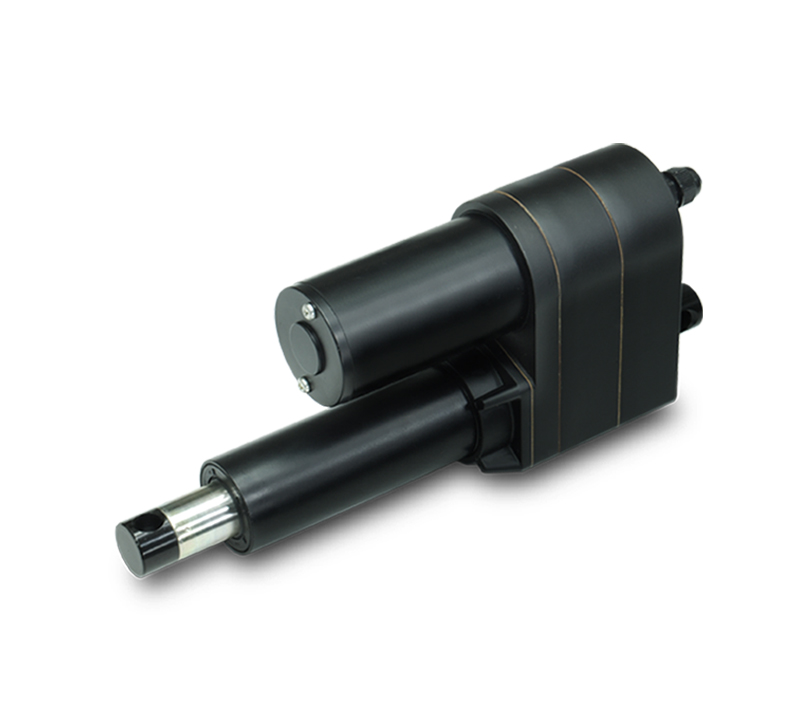

ID10K
Description
ID10K has the same dimensions and waterproof performance as ID10. It adopts ACME screw design to achieve a greater thrust up to 7000N, which is suitable for industry field, agriculture, and construction machinery that requires quick movement.
Technical information
  • Input voltage: 12 / 24V DC
  • Max. rated load: 7,000N
  • Max. static load: 13,600N
  • Speed at no load: 14mm/sec (Gear motor 20:1 average value)
  • Stroke: 102 / 153 / 203 / 254 / 305 / 457 / 610mm
  • IP level: IP65 (Static; non-action)
  • Overload protection by clutch
  • Spindle type: ACME screw
  • Extension tube material: Electroplated steel
  • Color: Black
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: -25°C ~ +65°C
Option
  • Positioning signal feedback with Hall effect sensor x 1
  • Analog and absolute positioning feedback with Potentiometer (POT)
  • Limit switches
  • IP Ievel: IP66/IP69K (Static; non-action)
Application
Industrial
Outdoor
Agriculture
