CF02
Description

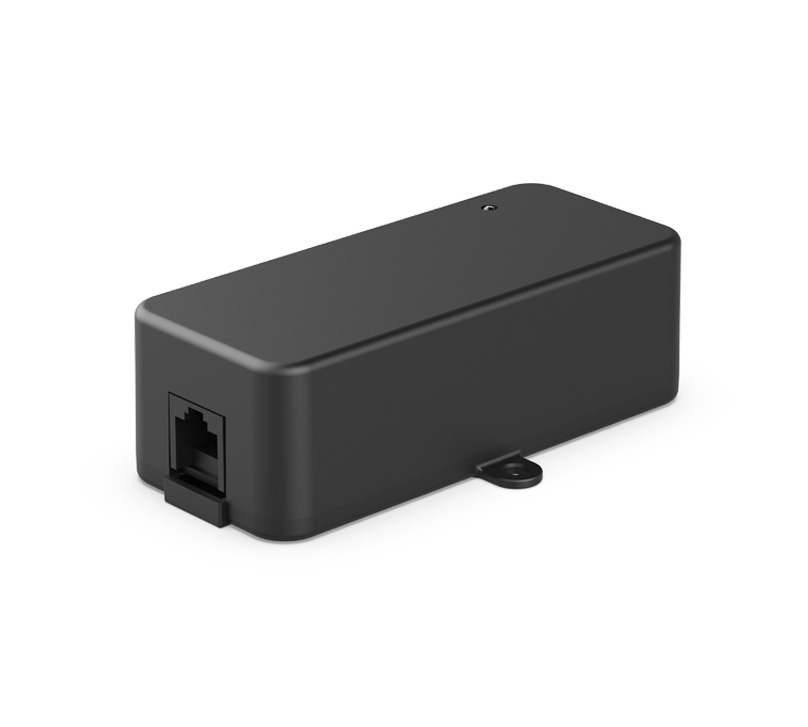

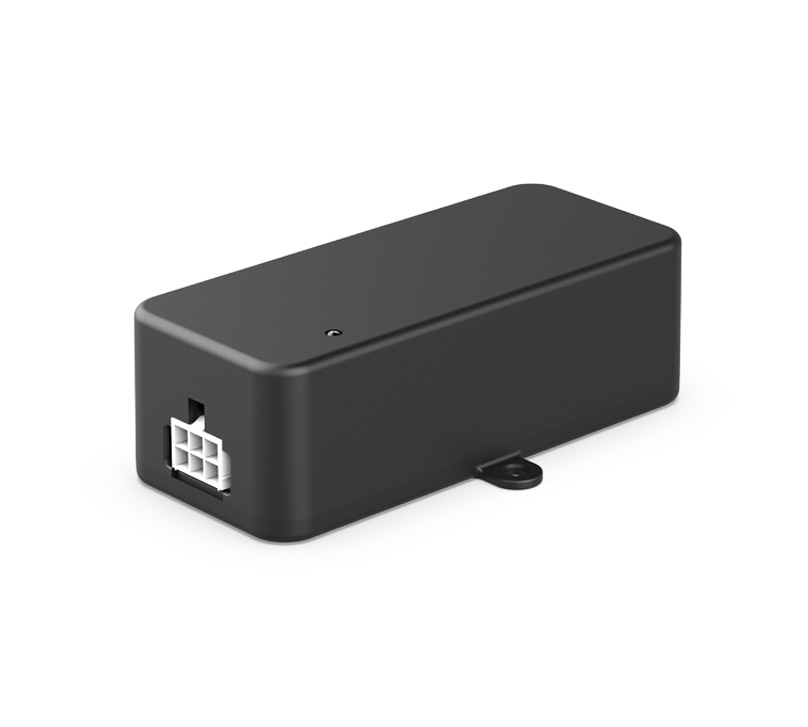

CF02 is an RFID control box that uses 125kHz RFID sensing to extend and retract the actuator, making it easy to operate. CF02 can be directly connected to actuators and power supply to support up to two actuators in joint movement. Furthermore, a second CF02 unit can be connected to extend the sensing position of the RFID card, increasing operational convenience.
Technical information
  • Power supply not included; input and output voltage 29V DC.
  • Operating indicator (green)
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Color: Black
  • Power supply: Powered by an external switching power supply, connected via the included cables.
  • Control one actuator, or two actuators to move simultaneously.
  • A second control box can be connected to simply expand the card's sensing location. It connects to the main control box via an RJ45 network cable (Prepared by customer)
  • Uses 125kHz RFID sensor cards for contactless operation
  • Overcurrent protection
  • Operation feedback with buzzer
  • Detachable cable set
  • Cable length: 2200mm straight
Download
Application
Furniture
