LD12
Description

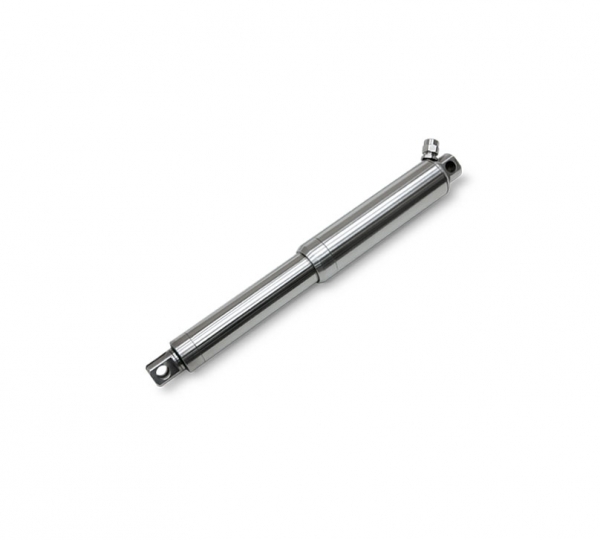

The LD12 actuator has a tubular in-line shape with no obtrusive parts and is especially useful for applications with tight installation spaces. In addition to the high IP rating, the whole SUS304 stainless steel appearance is optional for marine, outdoor and related automation application. And a low-noise, low-speed solution is also available.
Technical information
  • Input voltage: 12V DC / 24V DC
  • Max. load: 2000N (Push / Pull)
  • Max. static load: 2500N (Push / Pull)
  • Max. speed at no load: 33.5mm/sec (Typical value)
  • Speed at full load: 3.5mm/sec (Typical value @2000N loaded)
  • Stroke: 50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 mm
  • IP level: IP66, IPX9K (Optional)

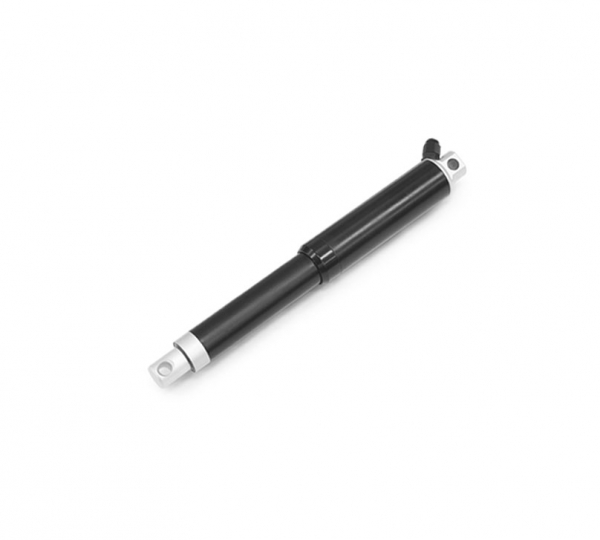

  • Material: All stainless steel “SUS304” / Black coating steel case
  • Salt spray tested for coating case: 250 hours
  • Positioning: Optional digital positioning feedback with 60V dual Hall effect sensors
  • Duty cycle:10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: -20°C~+70°C
  • Storage ambient temperature: -20°C~+80°C
  • Certified: CE Marking, Electromagnetic Compatibility Directive 2014/30/EU.
Application
Furniture
Leisure & Recreation
Medical Care
Industrial
Outdoor
