Linear Actuator MKS1

Comparison

Q'ty :

Inquiry

MKS1

Description

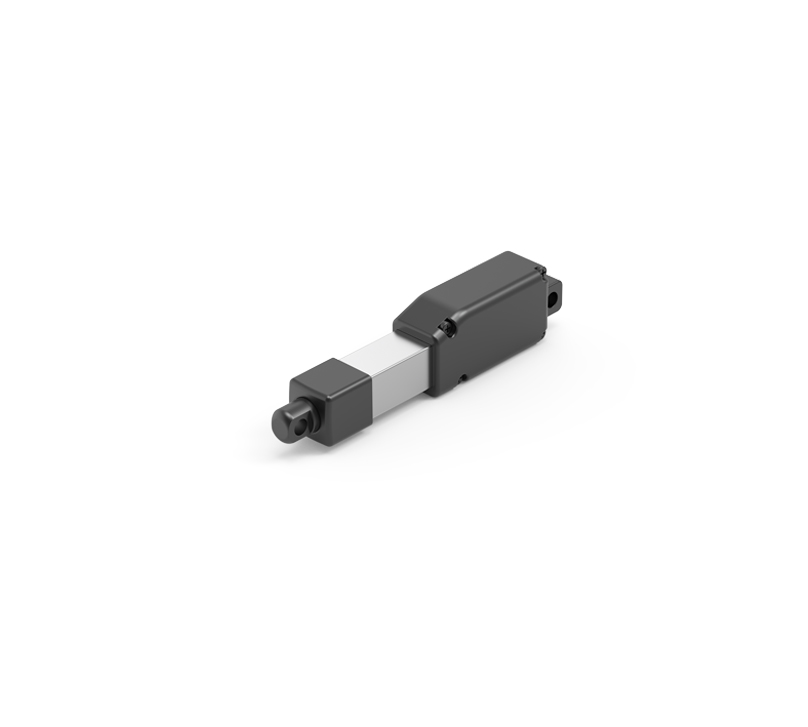

MKS1 is an in-line linear actuator characterized by its miniature size and waterproof. This model is available in four stroke and different speed options. In addition, there are two functional options, with end-of-stroke limit switches or with potentiometer for positioning.

Technical information

Input voltage: 12V DC
Max. load: 80N (Push/Pull)
Max. static load: 40N
Max. speed at no load: 19.0mm/sec (Typical value)
Speed at max load: 6.3mm/sec (Typical value @80N Loaded)
Stroke: 10 / 30 / 50 / 100mm
Noise level: ≦55dB
IP level: IP66/IP69K (Static; non-action)
Material: Aluminum extension and inner tube, plastic case.
Duty cycle: 20%
Operating ambient temperature: -10°C ∼ +50°C
Storage ambient temperature: -25°C ∼ +65°C
Options:
- MKS1-L version: With limit switches. When the actuator reaches the end of the stroke, the preset limit switch will cut off power and stop the motor automatically.

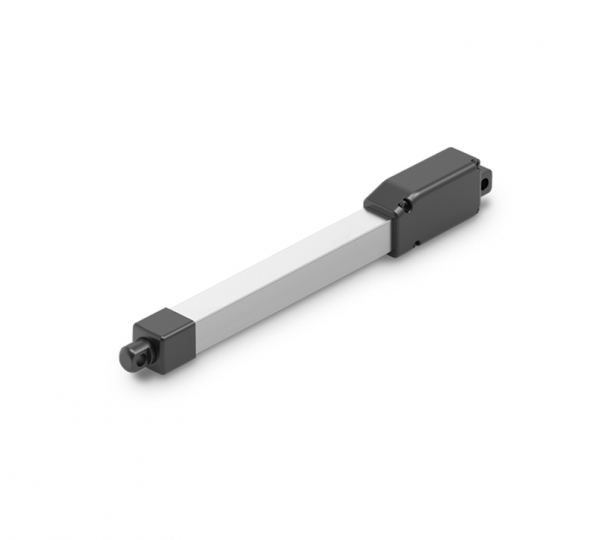

- MKS1-P version: With potentiometer positioning info, so that the controller can detect the stroke position of the actuator at any time. And it is an absolute position information, which will not deviate due to power failure.

Download

Application

Furniture

Industrial
