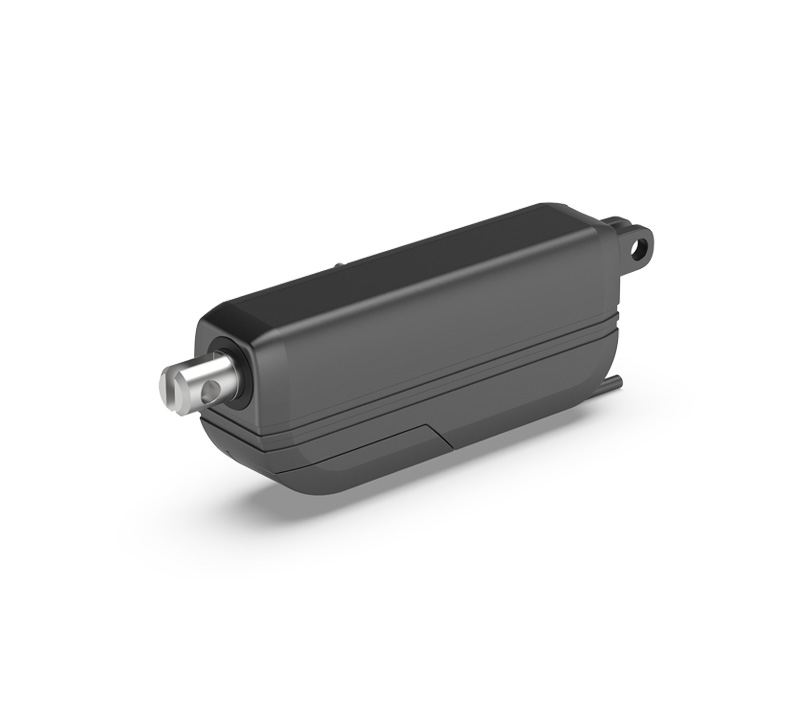

MK83
Description
MK83 is a lightweight intelligent actuator with a control board inside that can provide 750N thrust. The robust mechanism with high IP degree can work in harsh environment, and its size is suitable for limited installation space. There are multiple options for the built-in control board to suit different control platforms and various signal output requirements. MK83 is an advantageous choice for light load and short stroke applications in agriculture, construction and industrial automation.
Technical information
  • Input voltage: 12V DC / 24V DC
  • Max. load: 750N (Push / Pull)
  • Max. static load: 1500N (Push / Pull)
  • Max. speed at no load: 15mm/sec (Typical value)
  • Spindle type: ACME screw
  • Stroke: 20～127mm
  • Fixed built-in dimensions 245mm (Up to 345mm by request)
  • Noise level: ≦53dB
  • IP level: IP66M, IPX9K
  • Built-in stroke limit switches
  • Various control options to suit the user’s application
  • Stainless steel extension tube
  • Housing coating: Black, salt spray test for 500 hours.
Usage
  • Duty cycle: Max. 20%, 2 min. continuous operation in 10 min. and is valid for operation within an ambient temperature of +5°C∼+40°C)
  • Operating ambient temperature: -40°C∼+85°C (Full performance +5°C∼40°C)
  • Storage ambient temperature: -40°C∼+100°C
  • Relative humidity: Full performance from 20%∼80% - non-condensing
  • Atmospheric pressure: 700∼1060hPa
  • Height above mean sea level: Max. 3,000 meters
Download
Application
Industrial
Agriculture
