DLC3
Description

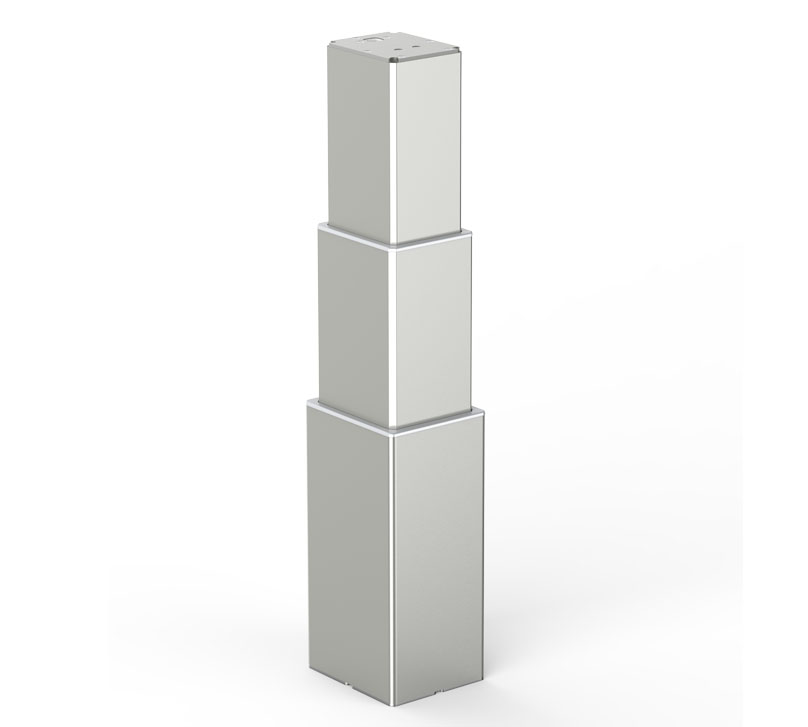

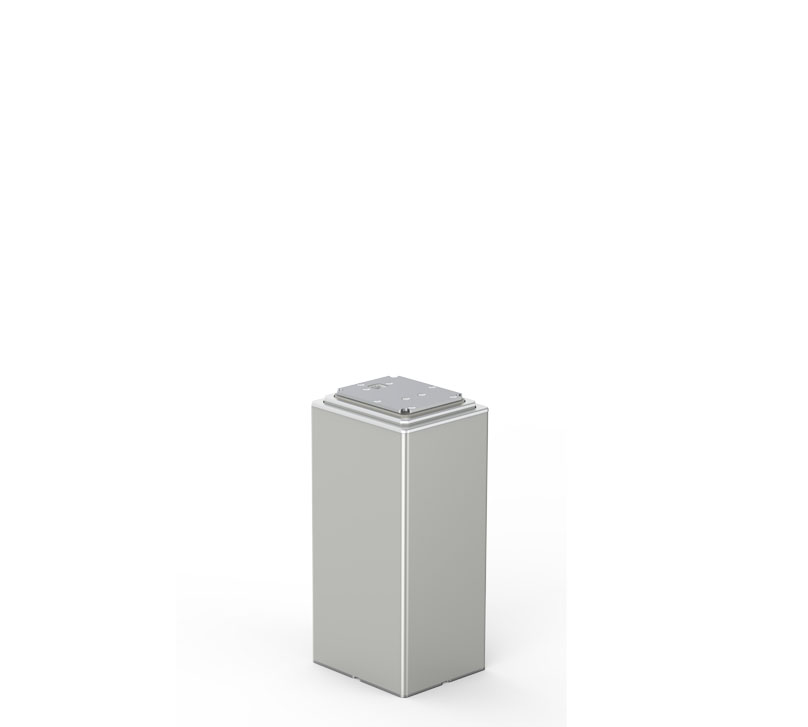

DLC3 is a three-stage electric lifting column suitable for industrial and medical environments. Compared with the two-stage lifting column, the three-stage design provides a smaller installation size to achieve the same stroke. In addition, DLC3 provides a cable tunnel option, which allows cable passage within DLC3 from other devices.
Technical information
  • Input voltage: 24V DC
  • Max. load: 4000N (push)
  • Speed at no load: 16mm/sec (Typical value)
  • Speed at full load: 13mm/sec (Typical value @4000N loaded)
  • Stroke: 260~1200mm
  • Retracted Length (A): Stroke/2+150mm (Standard)
  • Bending moment: max. 2000Nm (static) / max. 1000Nm (dynamic)
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Noise level: ≦56dB
  • IP Protection level: IPX6
  • Anodized aluminum body
  • Cable length: 2000mm
  • Preset limit switches
  • Ambient operation temperature: 5°C ~ +45°C
Option
  • Optional digital positioning feedback with Hall effect sensors x 2
  • Optional cable tunnel (Ø26mm) through column
Download
Application
Furniture
Medical Care
Industrial
