TX2A
Description

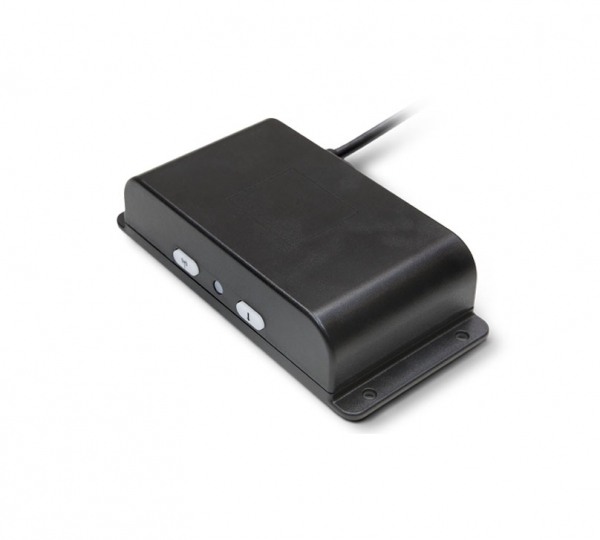

TX2A is a control box that acts as a wireless receiver supporting the control to 1 motor. There are several models of wireless remote controls that can be chosen to work with TX2A to upgrade the actuator direct-cut system to be wireless controlled.
Technical information
  • Power supply not included, input and output voltage 29V DC
  • Radio frequency: RF 2.4 GHz
  • Number of motor: 1 channel
  • Operating distance: 5m
  • Remote control pairing button
  • Spared flat function button
  • Operation indicator
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Color: Black
  • Cable length: 1000mm
Download
Application
Furniture
