MD52
Description
MD52 features its stainless extension tube, suitable to work in the harsh condition against dust and rain.
Technical information
  • Input voltage: 24V DC
  • Max. load: 1000N (push / pull)
  • Max. speed at no load: 25 mm/sec
  • Max. speed at full load: 18.5 mm/sec @ 1000N
  • Stroke: 100 ~ 300 mm
  • Noise Level: ≦70dB
  • IP Protection level: IP66 / IP69K
  • Color: Black
  • Preset limit switch
  • Stainless steel front connector and extension tube
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Ambient operation temperature: -20°C ~ +40°C
  • Certified: CE Marking, EMC Directive 2014/30/EU
Option

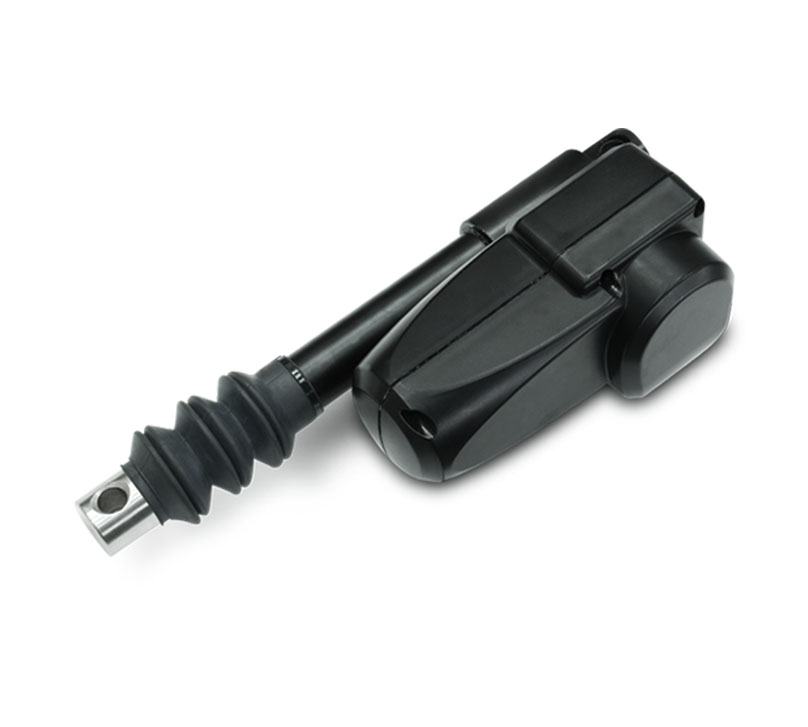

  • Bellow protection, available with 100 mm stroke only
  • Analog positioning feedback with Potentiometer (POT)
Download
Application
Industrial
