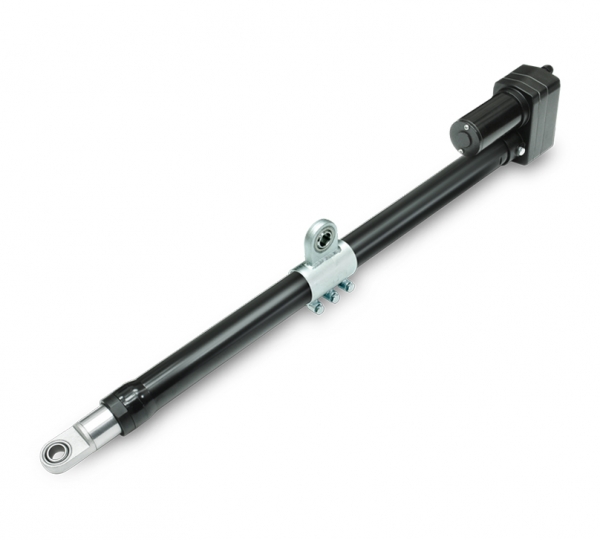

ID18
Description
ID18 is a robust and powerful actuator up to 18,000N thrust, which is designed for outdoor applications, such as solar tracker. There are several options available, including Ball screw spindle, ACME screw spindle, and different kinds of sensors for positioning feedback. The motor can be replaced directly without disassembling the actuator, which is convenient for maintenance.
Technical information
  • Input voltage: 24V DC / 36V DC
  • Rated load: 9,000N (ACME screw) / 12,000N (Ball screw)
  • Max. static load: 36,000N
  • Max. dynamic load: 12,000N (ACME screw) / 18,000N (Ball screw) in push and pull direction
  • Max. speed at no load: 3.3mm/sec (Typical value)
  • Stroke: 610mm (24”) / 914mm (36”) / 1219mm (48”) (other strokes are available)
  • IP level: IP65 (Static; non-action)
  • Preset limit switches
  • Steel extension tube
  • Color: Black
  • Power cord length: 250mm
  • Side cable outlet
  • Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
  • Operating ambient temperature: -25°C ~ +65°C
  • Compliant with CE Marking, EMC Directive 2014/30/EU
Option
  • Relative positioning signal feedback with single Hall effect sensor
  • Positioning signal feedback with Reed sensor
  • Analog positioning feedback with Potentiometer (POT)
  • Bottom cable outlet
Download
Application
Industrial
Outdoor
