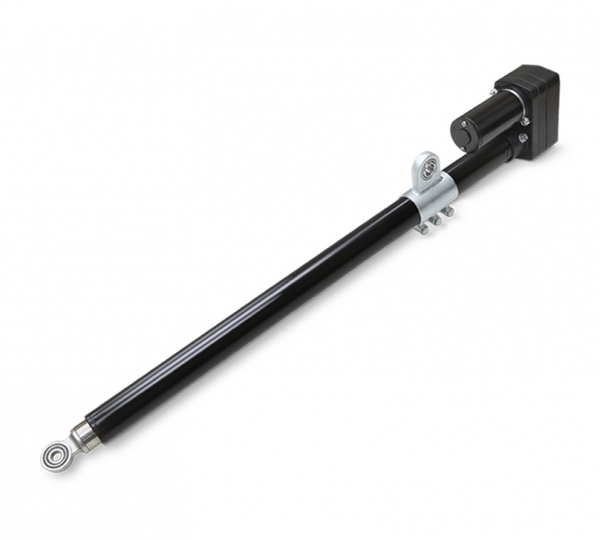

ID16

Description

ID16 is an actuator suitable for solar tracker application with maximum load of 5500N. There are various positioning feedback options available, such as dual Hall sensor, POT and reed sensor.

Technical information

Input voltage: 24V DC
Rated load: 5,500N
Max. static load: 13,600N
Max. speed at no load: 3.3 mm/sec (typical value)
Stroke: 450 / 600 / 900mm
IP level: IP65
ACME threaded spindle
Preset limit switches
Steel extension tube
Color: Black
Power cord length: 250mm (with bare wires)
Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
Operating ambient temperature: -20°C ~ +65°C
Certified: CE Marking, EMC Directive 2014/30/EU

Option

Positioning signal feedback with Hall effect sensor x 2
Positioning signal feedback with Reed sensor
Analog positioning feedback with Potentiometer (POT)
Clamp with spherical rod eye

Download

Data Sheet
2D
3D

Application

Industrial

Outdoor
