ID12
Description

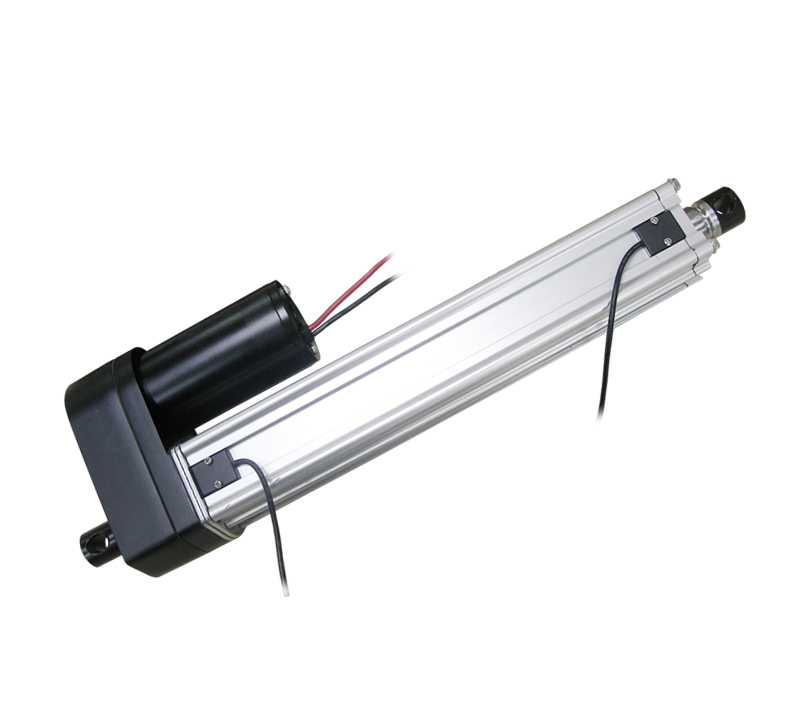

ID12 has the same thrust, speed, and low power consumption as ID10 actuators. Furthermore, ID12 features its square outer tube, facilitating the installation of the external and adjustable reed sensors, which create an arrival signal for the controller when detects the magnet on the screw nuts.

Technical information
  • Input voltage: 12 / 24 / 48V DC
  • Max. rated load: 3,500N (ACME screw) / 7,000N (Ball screw)
  • Max. static load: 7,500N (ACME screw) / 13,600N (Ball screw)
  • Max. speed at no load: 72.1mm/sec (Typical value)
  • Stroke: 100 / 150 / 200 / 300 / 450 / 600mm
  • IP level: IP66/IP69K (Static; non-action)
  • Overload protection by clutch
  • Aluminum outer tube
  • Stainless steel extension tube
  • Color: Black gearbox and motor
  • Duty cycle: 25%, max. 2 min. continuous operation in 8 min.
  • Operating ambient temperature: -25°C∼+65°C
  • Storage ambient temperature: -25°C∼+65°C
  • Certified: CE Marking, EMC Directive 2014/30/EU
  • Options:
    - Limit switch
    - Manual drive
  • Positioning:
    - Optional digital positioning feedback with single Hall effect sensor
    - Optional analog positioning feedback with Potentiometer (POT)
  • - Optional 1x or 2x external reed sensors to provide position arrival signal
Application
Industrial
Outdoor
Agriculture
