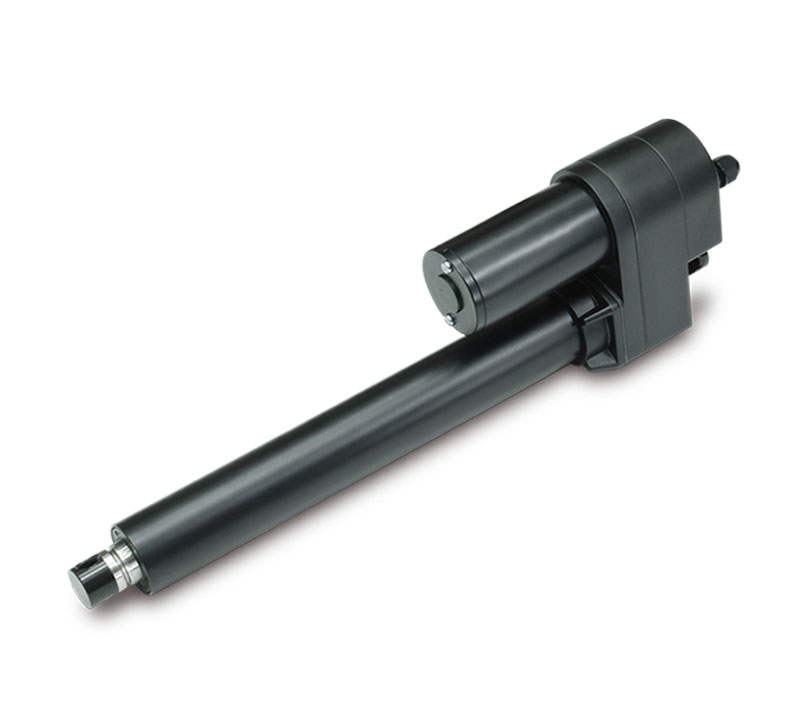

ID11
Description
ID11 is designed for industrial and agricultural application or construction equipment. In comparison with ID10, the install dimension is 40mm shorter with limit switch but no potentiometer option, this takes advantage of specific install requirement. Ball Screw and ACME spindle are available on ID11.
Technical information
  • Input voltage: 12 / 24 / 48V DC
  • Max. rated load: 3,500N (ACME) / 7,000N (Ball Screw)
  • Max. static load: 4,500N (ACME) / 13,600N (Ball Screw)
  • Max. speed at no load: 36.5 mm/sec (typical value)
  • Stroke: 102 / 153 / 203 / 254 / 305 / 457 / 610mm
  • IP level: IP54
  • Overload protection by clutch
  • Built-in CAM type limit switches (refer to notice below)
  • Extension tube material: Iron (for ACME) or stainless steel (for Ball Screw)
  • Color: Black
  • Bottom cable outlet
  • Power cord length: 250mm (with tinned wires)
  • Duty cycle: 25%, max. 2 min. continuous operation in 8 min.
  • Operating ambient temperature: -25°C ~ +65°C
  • Certified: CE Marking, EMC Directive 2014/30/EU
Option
  • IP level: IP65
  • Side cable outlet
  • Mounting bracket (MB30)
Application
Industrial
Outdoor
Agriculture
