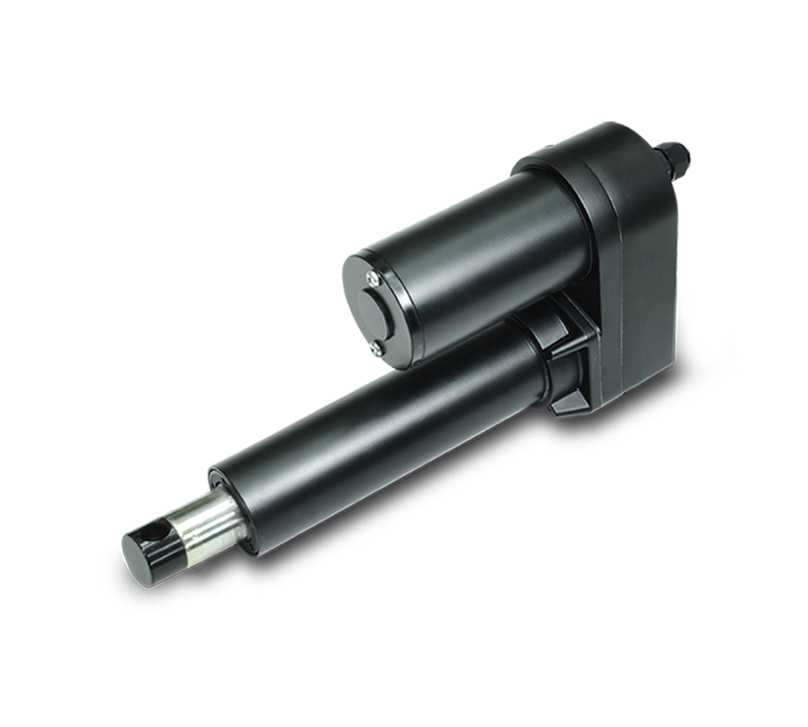

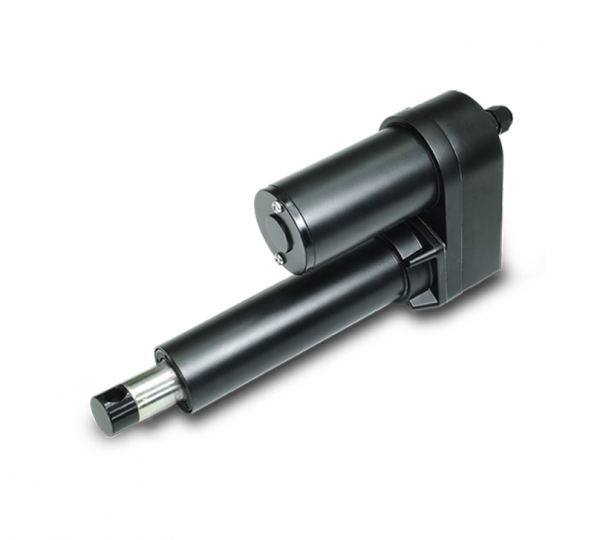

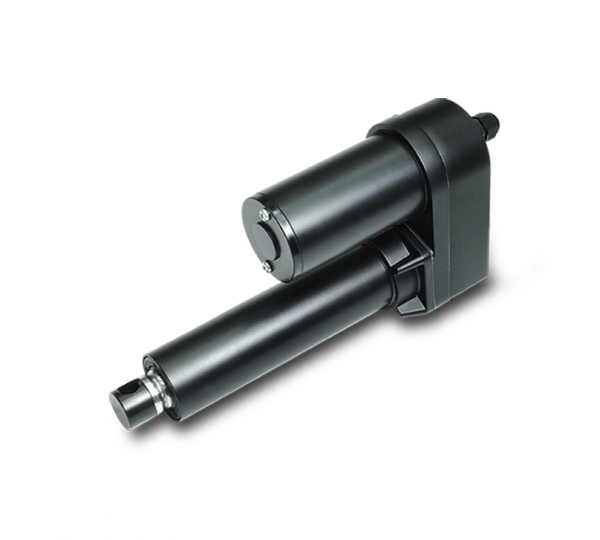

ID10 features its heavy load capability and high speed performance, which is suitable for in industrial, agriculture, construction and recreational field that requires quick movement, such as agricultural and construction machine. User can choose Ball Screw or ACME lead screw on demand.

Technical information
  • Input voltage: 12 / 24 / 48V DC
  • Max. rated load: 3,500N (ACME) / 7,000N (Ball Screw)
  • Max. static load: 4,500N (ACME) / 13,600N (Ball Screw)
  • Max. speed at no load: 72.1 mm/sec (typical value)
  • Stroke: 102 / 153 / 203 / 254 / 305 / 457 / 610mm
  • IP Level: IP54
  • Overload protection by clutch
  • Extension tube material: Iron (ACME) or stainless steel (Ball Screw)
  • Color: Black
  • Power cord length: 250mm (with bare wires)
  • Duty cycle: 25%, max. 2 min. continuous operation in 8 min.
  • Operating ambient temperature: -25°C ~ +65°C
  • Certified: CE Marking, EMC Directive 2014/30/EU
  • Positioning signal feedback with Hall effect sensor x 1

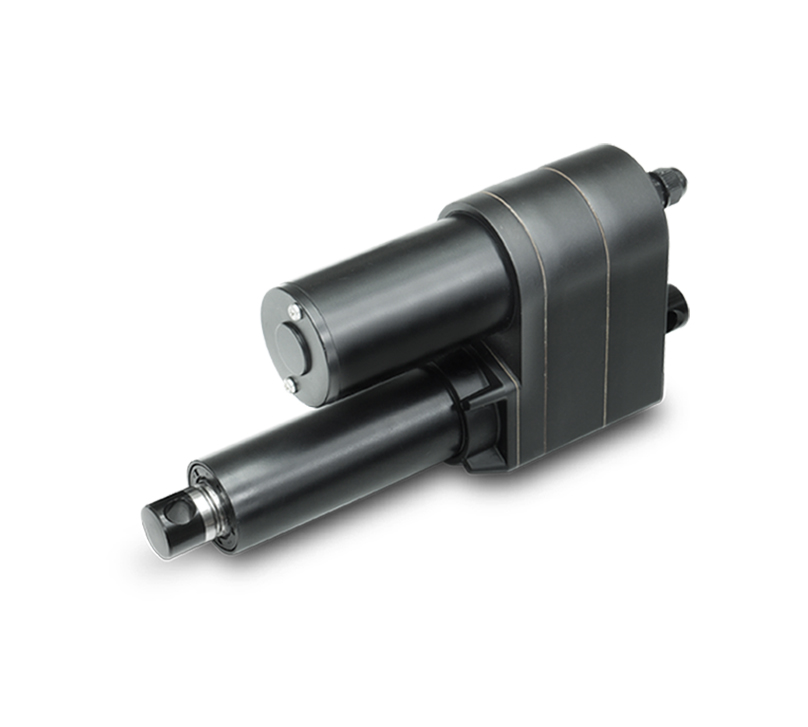

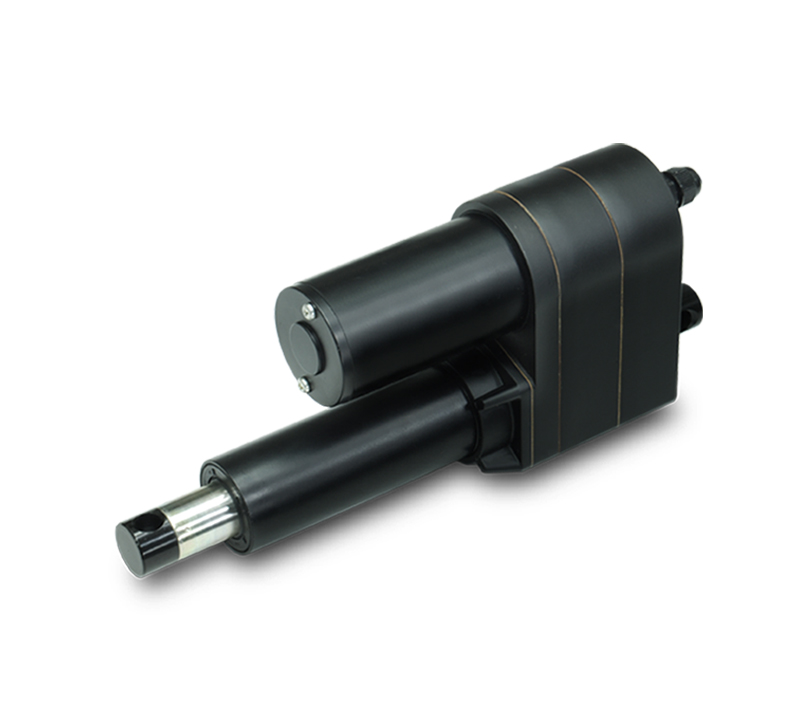

  • Analog and absolute positioning feedback with Potentiometer (POT)
  • Preset limit switches (LT), to stop motor automatically at both stroke ends by cutting power.
  • IP Level: IP65
  • Manual drive socket (Please refer to Page 11)
  • Mounting bracket (MB30)
