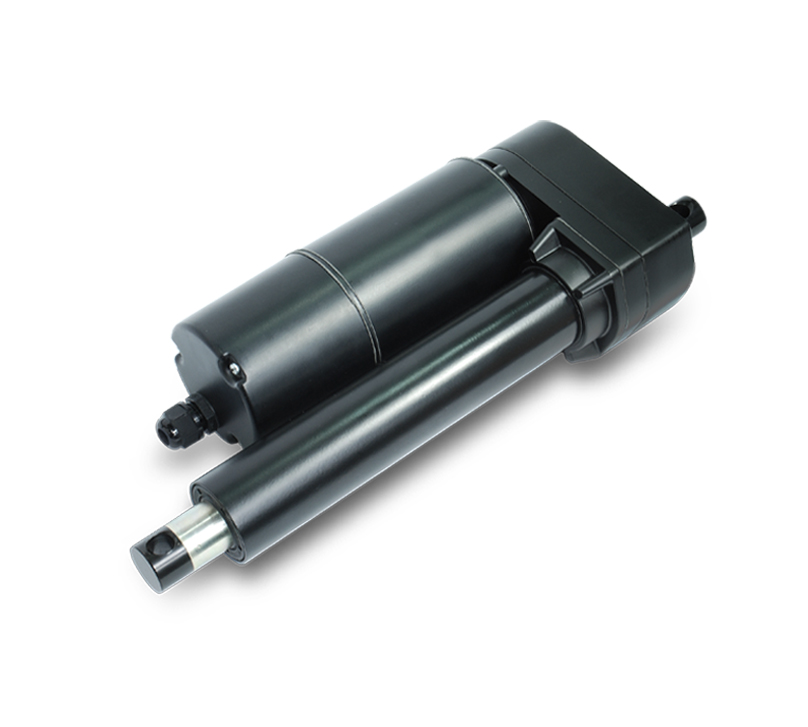

IA5 is a high speed AC powered linear actuator designed with stainless steel extension tube, which is suitable for various outdoor industrial applications, such as construction machine, air bridge, mining transportation conveyor…etc. It also features its heavy load capability and low current deviation. Ball Screw or ACME spindle is available for users to choose.
Technical information
  • Input voltage: 115V AC / 60Hz ; 230V AC / 50Hz
  • Max. rated load: 3,500N (ACME) / 7,000N (Ball Screw)
  • Max. static load: 4,500N (ACME) / 13,600N (Ball Screw)
  • Typical speed at no load: 52.8 mm/sec
  • Stroke: 102 ~ 610 mm
  • IP Protection level: IP54
  • Overload protection by clutch
  • Extension tube material: Iron (for ACME) or stainless steel (for Ball Screw)
  • Color: Black
  • Power cord length: 600 mm (with tinned wires)
  • Duty cycle: 25%, max. 4 min. continuous operation in 16 min.
  • Ambient operation temperature: -25°C ~ +65°C
  • Certified: UL E362815, CE marking, EMC Directive 2014/30/EU

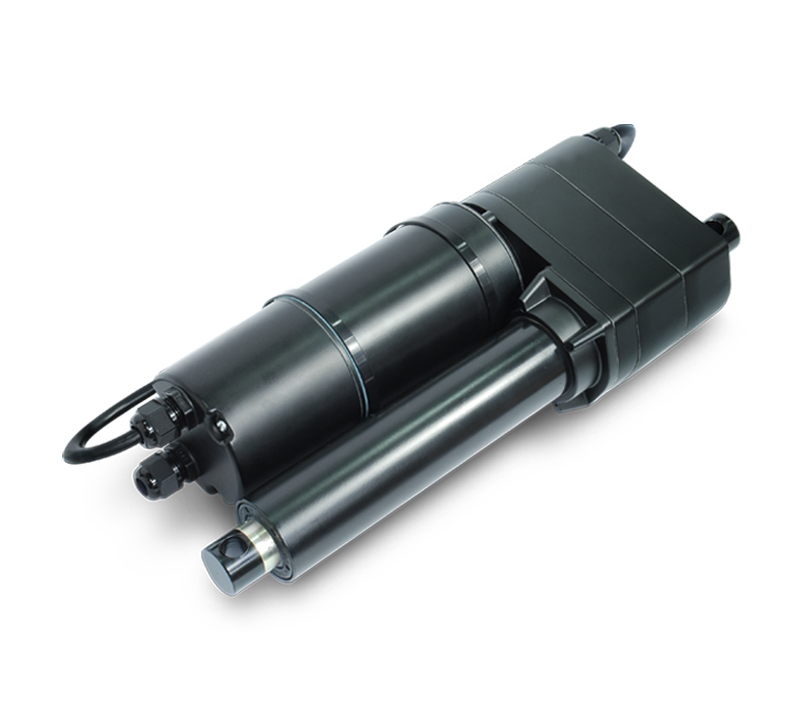

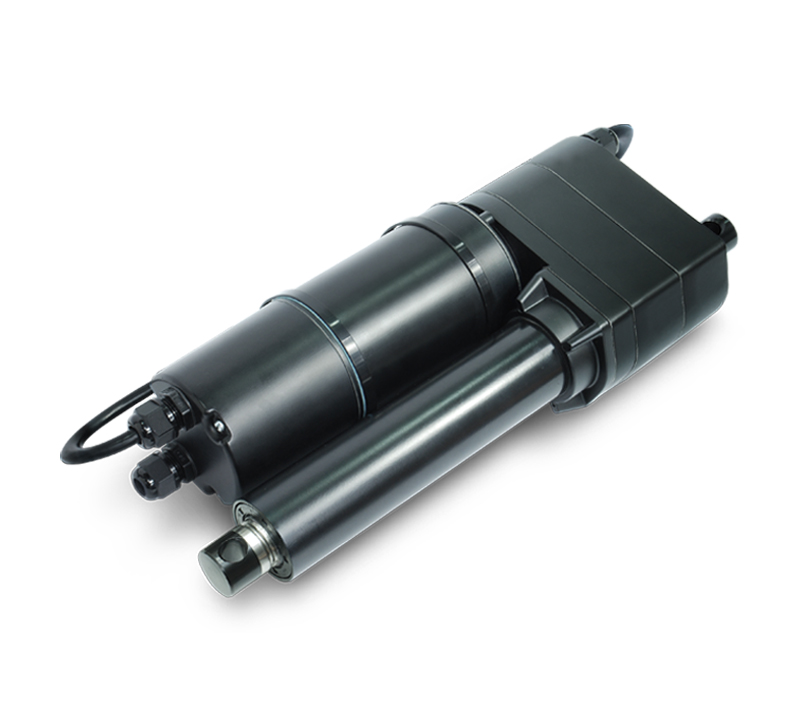

  • Analog and absolute positioning feedback with Potentiometer (POT)
  • Preset limit switches (LT), to stop motor automatically at both stroke ends by cutting power.
  • IP Protection level: IP65
  • Mounting bracket (MB30)
